HF0BA1540A700

Overview

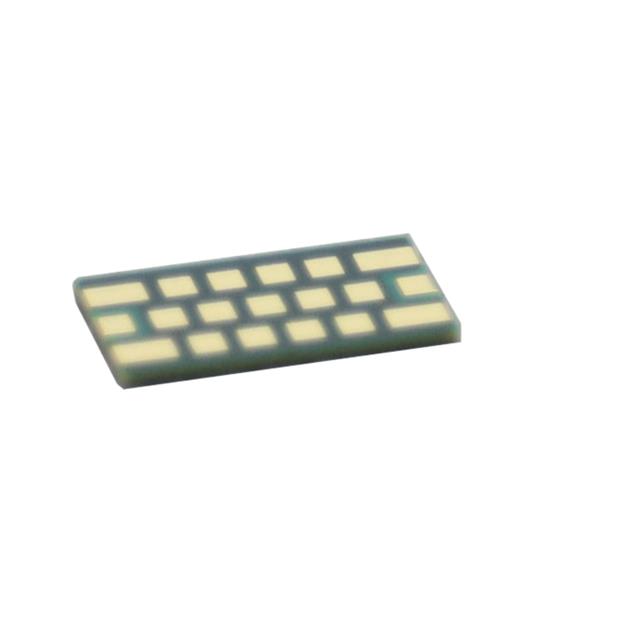

The HF0BA1540A700 is a high-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a center frequency of 1.54 GHz with a bandwidth of 1.14 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination styles within a 3116 (7840 metric) package. It exhibits an insertion loss of 0.82 dB and functions reliably across a temperature range of -55°C to +85°C.

Feature Summary

• Utilizes multilayer organic technology for robust high-frequency performance
• Provides precise high-pass filtering characteristics for signal conditioning
• Designed for surface-mount board integration

Applications

• RF signal conditioning circuits
• High-frequency communication systems
• Wireless infrastructure components

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with KYOCERA AVX before finalizing procurement decisions. Confirm that the 3116 package dimensions align with your PCB footprint requirements. Ensure that the operating temperature range meets your environmental specifications. Cross-reference the part number with official manufacturer catalogs to avoid counterfeit components.

Selection Notes

Select this component when a high-pass filter with a 1.54 GHz cutoff is required. The 50 Ohm impedance matches standard RF transmission lines. Consider the 3116 package size for space-constrained designs. Evaluate the insertion loss specification against system sensitivity requirements. Verify compatibility with automated surface-mount assembly processes.

Part Context

This part belongs to the HF series of high-pass filters from KYOCERA AVX. These components are engineered using multilayer organic technology to deliver stable performance in radio frequency environments. The series supports various frequency bands and impedance values for diverse signal conditioning needs.

Replacement Considerations

Consult official KYOCERA AVX documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' high-pass filters without rigorous electrical testing.
