HF0BA1550A700

Overview

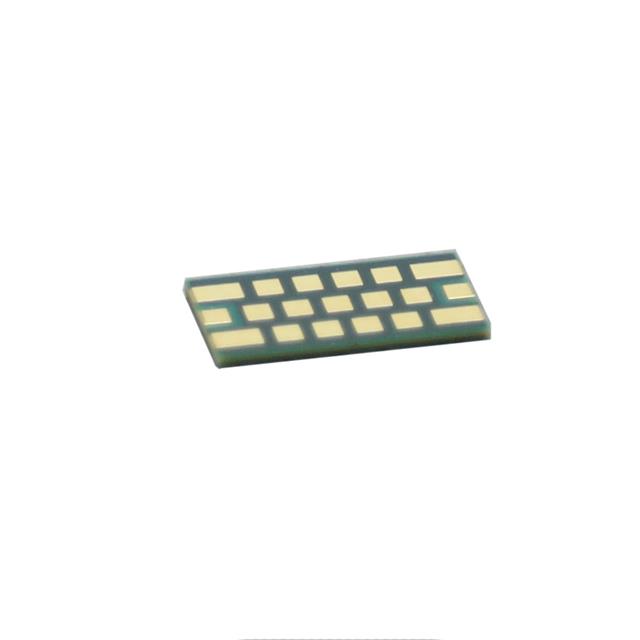

The HF0BA1550A700 is a high-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a center frequency of 1.55 GHz with a bandwidth of 1.38 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types. It is housed in a 3116 (7840 metric) package and supports board mounting. The device functions within a temperature range of -55°C to +85°C and belongs to the HF series.

Feature Summary

• High-pass filtering capability for radio frequency signal conditioning
• Robust construction suitable for automated assembly processes
• Surface-mount design compatible with standard PCB manufacturing

Applications

• RF front-end modules requiring high-frequency signal isolation
• Wireless communication systems operating near 1.55 GHz
• Signal conditioning circuits in electronic devices

Procurement Notes

Verify the specific datasheet version for precise insertion loss and rejection characteristics before integration. Confirm that the 3116 package dimensions align with the target PCB footprint. Ensure thermal management strategies account for the specified operating temperature range during system design validation.

Selection Notes

Select this component when a high-pass filter centered at 1.55 GHz is required. The 50 Ohm impedance matches standard RF transmission lines. Consider the 3116 package size for space-constrained designs. Verify compatibility with the intended operating temperature environment ranging from -55°C to +85°C.

Part Context

This part belongs to the HF series of high-pass filters from KYOCERA AVX. These components utilize thin-film technology to achieve stable performance at high frequencies. The series is engineered for reliability in demanding RF environments, offering consistent electrical characteristics across the specified temperature range.

Replacement Considerations

Check for direct substitutes within the HF series or other KYOCERA AVX high-pass filters with matching 1.55 GHz specifications. Verify package compatibility and impedance ratings before substitution.
