HF0BA1840A700

Overview

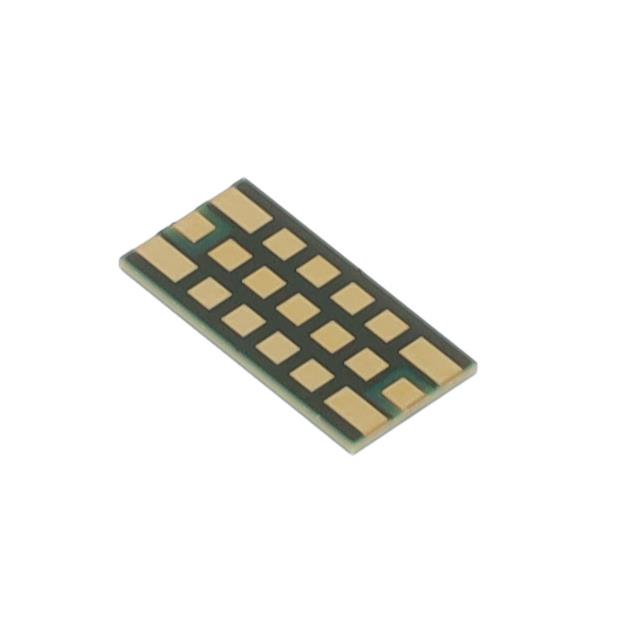

The HF0BA1840A700 is a radio frequency high-pass filter manufactured by KYOCERA AVX. It operates at a center frequency of 1.84 GHz with a bandwidth of 1.2 GHz. The component features a nominal impedance of 50 Ohms and utilizes surface mount technology in a 3116 (7840 metric) package. Key electrical specifications include an insertion loss ranging from 0.85 to 1.2 dB and a power handling capacity of 2 W. The device supports a rejection range of 1.44 to 1.5 GHz and functions within an operating temperature range of -55°C to +85°C.

Feature Summary

• Utilizes thin film and multilayer organic technologies for robust construction
• Designed for high-frequency signal conditioning applications
• Supports automated assembly processes

Applications

• RF signal filtering
• High-frequency communication systems
• Signal conditioning circuits

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with KYOCERA AVX or authorized distributors before procurement. Confirm that the 3116 package dimensions align with your PCB footprint requirements. Ensure that the thermal management capabilities meet the operational temperature range of -55°C to +85°C for your specific application environment. Cross-reference the part number to avoid confusion with similar models in the HF series.

Selection Notes

Select this component when a high-pass filter with a cutoff near 1.84 GHz is required. Consider the 50 Ohm impedance match for system integration. Evaluate the 2 W power rating against maximum expected signal levels. The 3116 SMD package size must fit the available board space. Verify insertion loss specifications against system sensitivity requirements.

Part Context

This part belongs to the HF series of RF filters produced by KYOCERA AVX. The series leverages thin film and multilayer organic technologies to deliver performance in demanding RF environments. These components are engineered for reliability and consistent electrical characteristics across production batches, supporting various signal conditioning needs in modern electronic devices.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official KYOCERA AVX resources for potential alternatives within the same product family.
