HF1326524

Overview

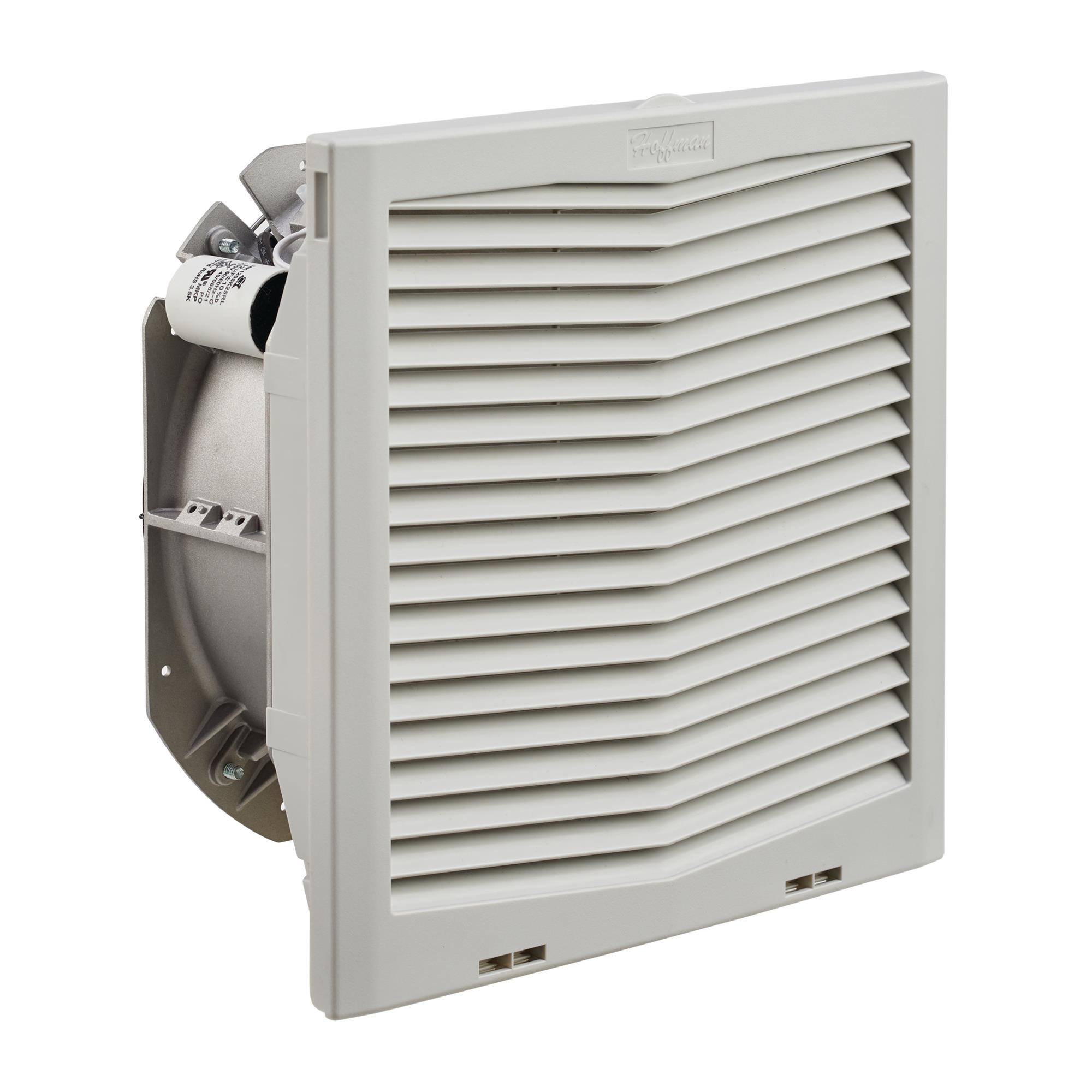

The HF1326524 is a side-mount filter fan package manufactured by nVent Hoffman. It provides an airflow capacity of 484 CFM (822 m³/hr) and operates at 230V. The unit features a Click-Fit design for tool-free installation into enclosure walls, utilizing terminal block connections. This component is engineered to facilitate efficient heat dissipation within industrial enclosures.

Feature Summary

• Click-Fit design enables quick installation without tools or screws
• Terminal block connections ensure secure electrical integration
• Side-mount configuration optimizes space utilization

Applications

• Industrial automation systems
• Automotive assembly equipment
• Package handling machinery

Procurement Notes

Verify the specific voltage rating and airflow requirements against the application needs before procurement. Confirm that the enclosure wall thickness supports the Click-Fit mounting mechanism. Ensure compatibility with existing terminal block wiring configurations. Check for any specific environmental ratings required for the installation site.

Selection Notes

Select this model when high airflow is required in a compact side-mount footprint. Consider the 230V operation requirement during system design. Evaluate the ease of filter replacement via the finger-flip mechanism for maintenance planning. Compare against other Hoffman cooling solutions based on specific thermal load calculations.

Part Context

This filter fan belongs to the nVent Hoffman enclosure cooling product line. It is designed to complement various industrial enclosure types. The manufacturer specializes in protective housing solutions for electronic components. This specific model addresses thermal management challenges in automated environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify dimensional compatibility if considering alternative brands. Ensure electrical specifications match exactly to avoid installation issues.
