HF30ACC321611-T

Chip Ferrite Bead Overview

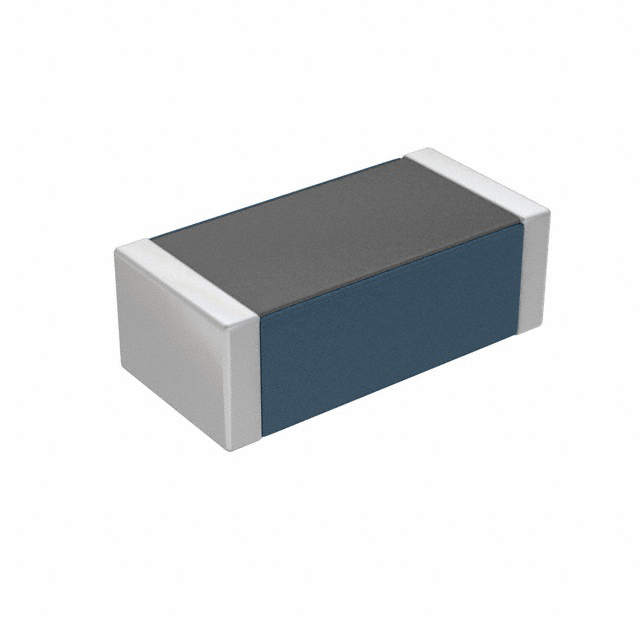

The HF30ACC321611-T is a signal line ferrite bead manufactured by TDK Corporation, housed in a compact 1206 (3216 metric) surface-mount package. It provides an impedance of 19 ohms with a tolerance of 25%. The component features a rated current of 1.5A and operates within a temperature range of -40°C to 125°C, including self-temperature rise effects.

Chip Ferrite Bead Feature Summary

• Designed for EMI filtering on signal lines
• Compact 1206 surface-mount footprint
• Suitable for reflow and iron soldering methods

Chip Ferrite Bead Applications

• Signal line EMI suppression
• RFI filtering in electronic circuits
• High-frequency noise attenuation

Chip Ferrite Bead Procurement Notes

Verify the exact suffix against official TDK documentation to confirm packaging specifications such as tape and reel quantities. Ensure the part number matches the required impedance and current ratings for your specific circuit design before ordering.

Chip Ferrite Bead Selection Notes

Select this component when a 1206 footprint is required for signal line filtering. Confirm that the 1.5A current rating and 19-ohm impedance meet the system's noise suppression and power handling requirements.

Chip Ferrite Bead Part Context

This part belongs to the TDK ACC series of chip beads, which offers various rated currents and frequency characteristics. The ACC series is engineered for effective EMI/RFI filtering in compact electronic designs.

Chip Ferrite Bead Replacement Considerations

Consult TDK datasheets for direct substitutes within the HF30ACC series or equivalent 1206 ferrite beads from other manufacturers, ensuring identical impedance and current ratings.
