HF50ACC322513-T

Chip Ferrite Bead Overview

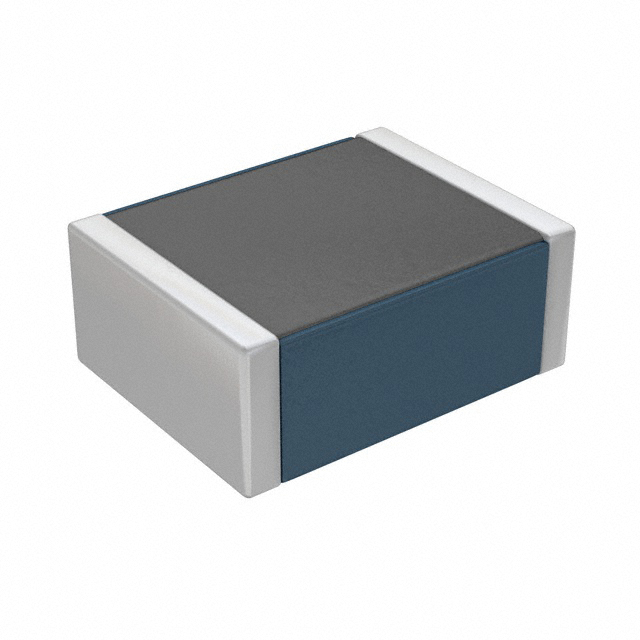

The TDK HF50ACC322513-T is a single-line ferrite bead in the HF-ACC series, housed in a 1210 (3225 metric) surface-mount package. It provides an impedance of 60 Ohms at 100 MHz with a maximum DC resistance of 50 milliohms and a rated current of 1.5 A. The component operates within a temperature range of -40°C to 125°C and measures 3.20mm x 2.50mm x 1.30mm.

Chip Ferrite Bead Feature Summary

• Provides high impedance for signal line filtering at 100 MHz
• Low DC resistance minimizes power loss in high-current applications
• Designed for surface-mount assembly in compact footprints

Chip Ferrite Bead Applications

• Signal line noise suppression
• High-speed digital circuit filtering
• Power supply output filtering

Chip Ferrite Bead Procurement Notes

Verify component status as this part is listed as Not Recommended for New Designs (NRND). Confirm availability through authorized distributors or check for manufacturer-recommended substitutes like MPZ2012S101AT000 before finalizing designs. Ensure RoHS3 compliance matches project requirements.

Chip Ferrite Bead Selection Notes

Select this component when a 60 Ohm impedance at 100 MHz is required for a single-line application carrying up to 1.5 A. The 1210 package offers a balance between current handling and board space. Consider the low DCR for efficiency-critical paths where voltage drop must be minimized.

Chip Ferrite Bead Part Context

This ferrite bead belongs to TDK's HF-ACC series, designed for commercial applications. It serves as a passive component for electromagnetic interference suppression. The specific model utilizes a chip-style construction suitable for automated surface-mount placement on printed circuit boards.

Chip Ferrite Bead Replacement Considerations

TDK recommends MPZ2012S101AT000 as a substitute. Verify electrical compatibility and physical dimensions before replacement. Other potential alternatives include Laird-Signal Integrity Products MI1210K600R-10.
