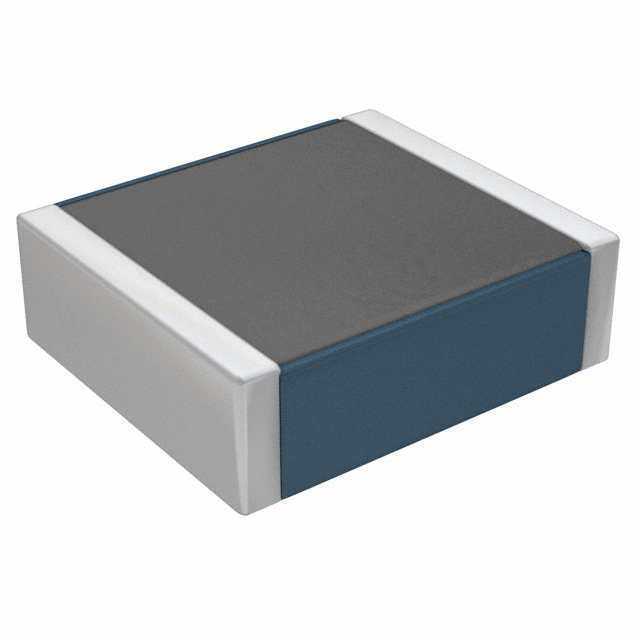

HF50ACC575018-T

Chip Ferrite Bead Overview

The HF50ACC575018-T is a single-line ferrite bead from the TDK ACC series, designed for surface-mount applications. It features a 2220 (5750 Metric) package with a DC resistance of 1.8 Ohms and an impedance of 180 Ohms at 100 MHz. The component operates within a temperature range of -40°C to +125°C and supports a maximum current rating of 3.0 Amperes. It is RoHS compliant and lead-free.

Chip Ferrite Bead Feature Summary

• Provides high-frequency noise suppression through significant impedance characteristics in the RF spectrum.
• Designed for compact surface-mount integration using standard 2220 footprint dimensions.
• Capable of handling continuous currents up to 3.0 Amperes without saturation.

Chip Ferrite Bead Applications

• High-speed digital signal line filtering
• Power supply output noise attenuation
• EMI suppression in compact electronic assemblies

Chip Ferrite Bead Procurement Notes

Verify component authenticity through authorized distribution channels. Confirm that the specific suffix matches the required impedance and current specifications. Ensure storage conditions adhere to manufacturer guidelines to maintain solderability and material integrity prior to assembly.

Chip Ferrite Bead Selection Notes

Select this component when space constraints require a 2220 package size. Evaluate circuit requirements against the 180 Ohm impedance profile at 100 MHz. Ensure the operating current remains below the 3.0 A limit to prevent thermal degradation or performance loss during operation.

Chip Ferrite Bead Part Context

This part belongs to the ACC series of ferrite beads manufactured by TDK Corporation. These components are engineered for effective electromagnetic interference reduction in dense PCB layouts. The series offers standardized footprints to facilitate automated placement processes.

Chip Ferrite Bead Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative suppliers based on identical impedance curves and physical dimensions before implementation.

Chip Ferrite Bead FAQ

What is the impedance value of the HF50ACC575018-T?

The component has an impedance of 180 Ohms measured at a frequency of 100 MHz.

What is the maximum current rating for this ferrite bead?

The device supports a maximum continuous current of 3.0 Amperes.
