HF50ACC635050-T

Chip Ferrite Bead Overview

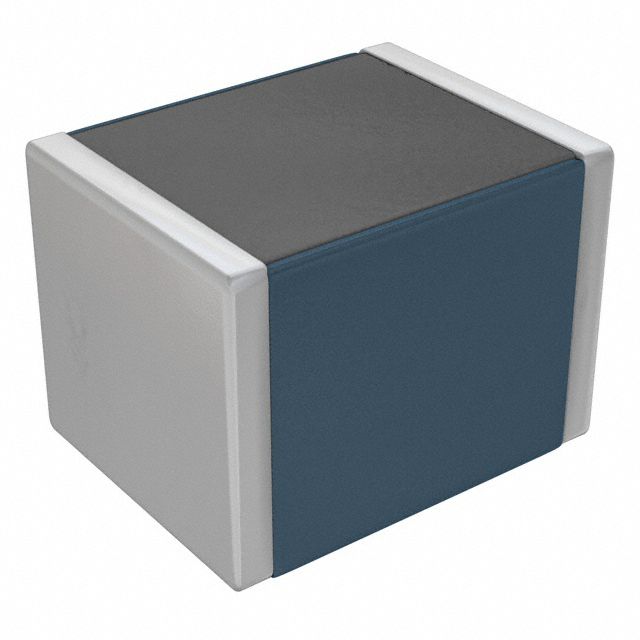

The HF50ACC635050-T is a single-line ferrite bead from the TDK ACC series, designed for noise suppression in electronic circuits. It features an impedance of 600 Ohms at 100 MHz and supports a maximum current rating of 3 Amperes. The component utilizes a 2520 (6450 Metric) surface-mount package with a DC resistance of 40 mOhm maximum. It is lead-free and RoHS compliant, suitable for applications requiring effective high-frequency interference reduction.

Chip Ferrite Bead Feature Summary

• Provides high impedance to suppress electromagnetic interference at specific frequencies
• Supports high current loads up to 3A for power line applications
• Compact surface-mount design facilitates automated PCB assembly

Chip Ferrite Bead Applications

• Noise filtering on DC power supply lines
• Signal integrity enhancement in high-speed digital circuits
• EMI suppression in consumer electronics and industrial equipment

Chip Ferrite Bead Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and lead-free specifications match project requirements. Check for obsolescence notices as this part may be discontinued; consult official substitution lists if availability is limited. Ensure storage conditions adhere to moisture sensitivity levels specified in the datasheet.

Chip Ferrite Bead Selection Notes

Select based on required impedance value at target frequency and current handling capacity. Evaluate physical footprint compatibility with existing PCB layouts. Consider thermal performance under continuous load conditions. Verify that the low DC resistance meets voltage drop constraints in the circuit design. Compare against alternative series for cost and availability optimization.

Chip Ferrite Bead Part Context

This ferrite bead belongs to TDK's ACC series, which offers various impedance characteristics and current ratings. The series is engineered for compact noise suppression solutions in modern electronics. Components are typically used in conjunction with capacitors for enhanced filtering performance. The product line emphasizes reliability and consistency across manufacturing batches.

Chip Ferrite Bead Replacement Considerations

Official substitute: HF50ACC635050-TL. Verify electrical equivalence before implementation.
