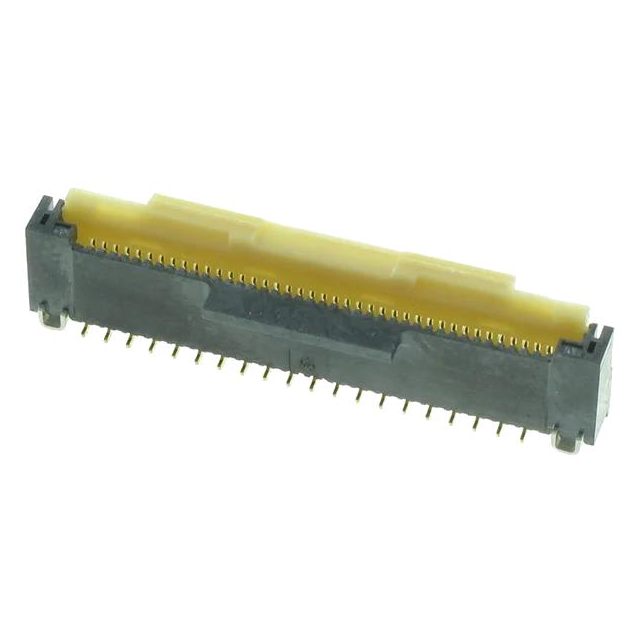

HF601-30-12

Product Detailed Parameters

• Description：CONN FFC VERT 30POS 0.5MM SMD
• Series：HF601
• Mfr：Yamaichi Electronics
• Package：Bulk
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：30
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.079" (2.00mm)
• Locking Feature：Flip Lock
• Cable End Type：-
• Contact Material：Copper Alloy
• Contact Finish：Gold-Nickel
• Housing Material：Liquid Crystal Polymer (LCP)
• Actuator Material：Polyamide (PA9T), Nylon 9T
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：-
