HFA150066-0A0

Overview

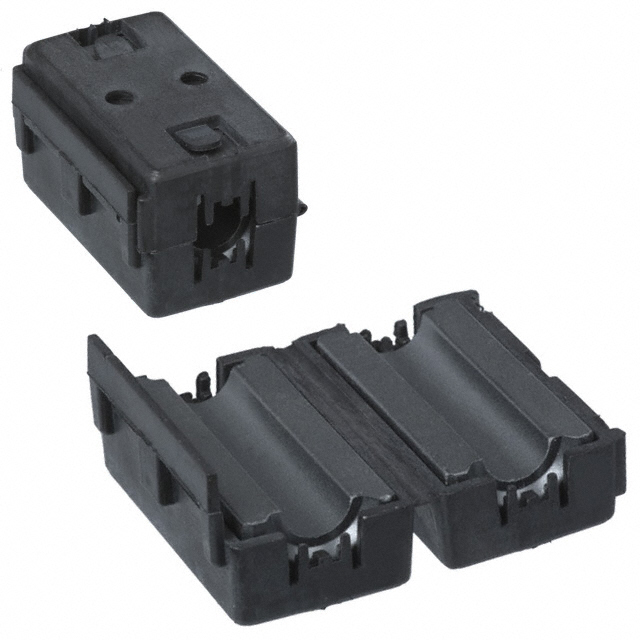

The HFA150066-0A0 is a hinged ferrite core manufactured by Laird-Signal Integrity Products, designed for high-frequency filtering applications above 500 MHz. It features a snap-on mounting type and free-hanging installation. The component exhibits an impedance of 274 Ohms at 300 MHz. Key dimensions include an inner diameter of 0.278 inches (7.05 mm), an outer dimension of 0.744 inches wide by 0.715 inches high (18.90 mm x 18.15 mm), and a length of 1.280 inches (32.50 mm).

Feature Summary

• Hinged snap-on design for easy cable installation without disconnection.
• Optimized for high-frequency electromagnetic interference suppression above 500 MHz.
• Free-hanging construction allows flexible placement on cables.

Applications

• High-frequency signal cable noise suppression
• Electromagnetic interference filtering in electronic assemblies
• Cable protection for data transmission lines

Procurement Notes

Verify the specific part number HFA150066-0A0 against official manufacturer documentation to confirm compatibility with your application requirements. Ensure that the hinged design and dimensional specifications match your cable constraints. Cross-reference datasheets for impedance characteristics at relevant frequencies to validate performance expectations.

Selection Notes

Select this component when a non-intrusive, snap-on ferrite solution is required for cables exceeding 7.05 mm in diameter. Consider the 274 Ohm impedance at 300 MHz for high-frequency noise environments. Verify that the physical dimensions fit within the available space for free-hanging installation.

Part Context

This ferrite core belongs to the cable ferrite category from Laird-Signal Integrity Products. It serves as a passive component for suppressing high-frequency electromagnetic interference on cables. The hinged design distinguishes it from solid cores, offering convenience during assembly and maintenance processes.

Replacement Considerations

No publicly confirmed substitute part numbers are available for this specific model. Consult manufacturer resources for potential alternatives if sourcing issues arise.

FAQ

What is the mounting type of the HFA150066-0A0?

It is a hinged snap-on ferrite core designed for free-hanging installation.

What is the inner diameter of this ferrite core?

The inner diameter is 0.278 inches (7.05 mm).
