HFA150068-0A2

Overview

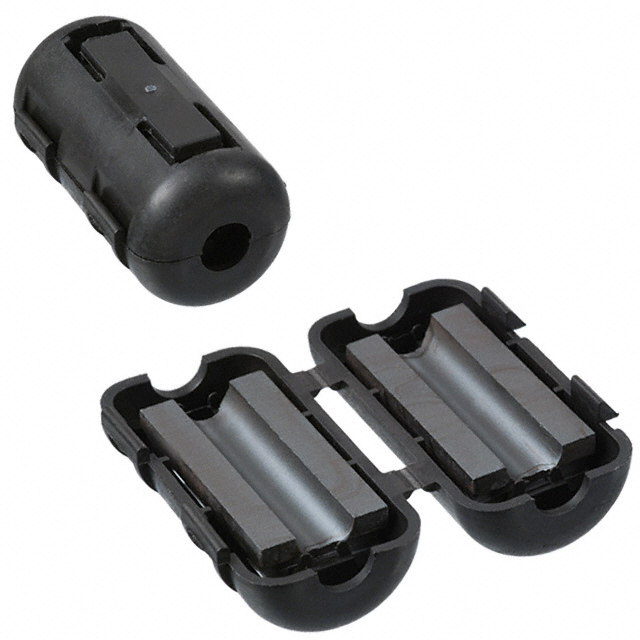

The HFA150068-0A2 is a hinged snap-on ferrite core manufactured by Laird-Signal Integrity Products. It features an inner diameter of 0.266 inches (6.76mm) and an outer diameter of 0.827 inches (21.00mm), with a length of 1.642 inches. The component provides an impedance of 275 Ohms at 300MHz, designed for EMI suppression in cable applications.

Feature Summary

• Hinged snap-on design allows installation on existing cables without disconnection
• Free-hanging configuration suitable for various cable routing scenarios
• High impedance performance at 300MHz for effective noise reduction

Applications

• EMI/RFI noise suppression on electronic cables
• Signal integrity enhancement in high-frequency circuits
• Cable filtering for industrial equipment

Procurement Notes

Verify the exact physical dimensions and impedance specifications against the official datasheet before integration. Confirm that the cable diameter falls within the 0.266-inch inner diameter tolerance. Ensure the operating frequency range aligns with the 300MHz impedance rating for effective noise suppression.

Selection Notes

Select this component when post-production cable modification is required due to its snap-on design. Consider the 275 Ohm impedance at 300MHz for target noise frequencies. Evaluate the 0.827-inch outer diameter for spatial constraints in the assembly.

Part Context

This ferrite core belongs to the free-hanging cable core category from Laird-Signal Integrity Products. It is distinct from bead or chip types, offering a reusable solution for cable-based EMI mitigation. The material composition supports high-frequency attenuation characteristics.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. Verify compatibility with alternative cores based on identical inner diameter and impedance specifications.
