HFA163090-0A2

Overview

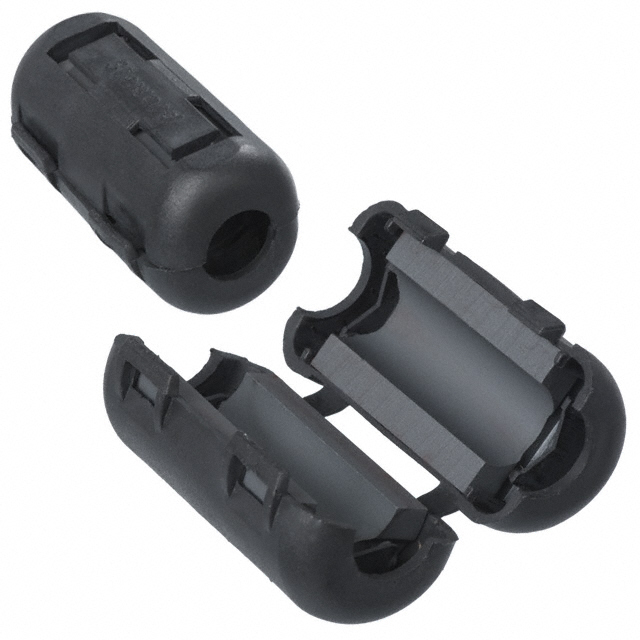

The HFA163090-0A2 is a hinged ferrite clamp-on core manufactured by Laird-Signal Integrity Products. It features a round shape with an inner diameter of 9.09 mm and an outer diameter of 20.07 mm. The component provides an impedance of 210 Ohms at 300 MHz. Operating temperatures range from -40°C to +125°C. External dimensions are 40.36 mm in length, 20.8 mm in width, and 19.1 mm in height.

Feature Summary

• Hinged snap-on design for easy installation on existing cables without disconnection
• High impedance performance at 300 MHz for effective EMI suppression
• Free-hanging configuration suitable for various cable routing applications

Applications

• Cable EMI suppression in electronic equipment
• Signal integrity enhancement for wiring harnesses
• Noise filtering in industrial control systems

Procurement Notes

Verify the manufacturer part number HFA163090-0A2 against official Laird datasheets to ensure authenticity. Confirm that the hinged mechanism functions correctly and matches the specified 9.09 mm inner diameter. Check RoHS compliance status as indicated in the product documentation before procurement.

Selection Notes

Select this component when a snap-on ferrite core is required for post-assembly cable treatment. Ensure the cable diameter fits within the 9.09 mm inner dimension. Consider the 210 Ohm impedance at 300 MHz for target noise frequencies. Verify temperature ratings meet operational environment requirements.

Part Context

This ferrite core belongs to the HFA series of split cores designed for signal integrity applications. It is categorized under cable ferrites and magnetic components. The product is intended for suppressing electromagnetic interference on wires and cables in commercial and industrial electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Laird-Signal Integrity Products for equivalent alternatives if this specific model is unavailable.

FAQ

What is the mounting style of the HFA163090-0A2?

It uses a hinged (snap-on) design allowing it to be clamped around cables without disconnecting them.

What is the impedance value at the test frequency?

The impedance is 210 Ohms at 300 MHz.
