HFB03-601-RC

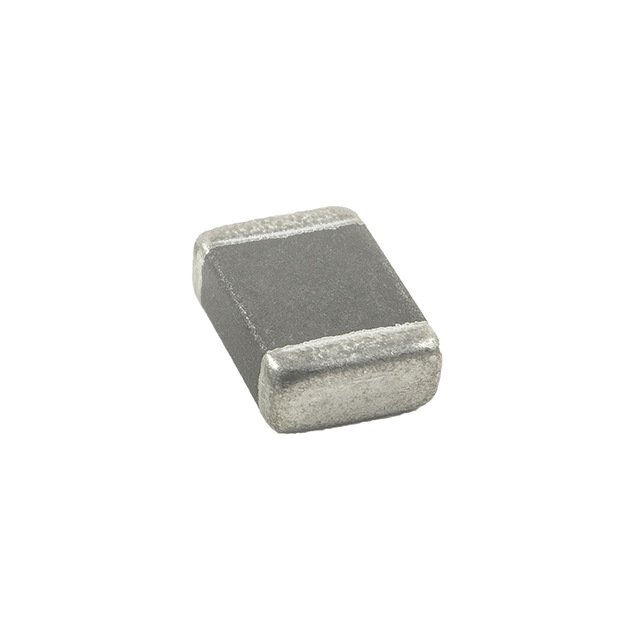

Chip Ferrite Bead Overview

The HFB03-601-RC is a surface-mount ferrite bead manufactured by Allied Components International. It features a 0402 package and provides an impedance of 600 ohms at 100 MHz. The component supports a maximum current rating of 300 mA with a DC resistance of 700 milliohms. It operates within a temperature range of -55°C to +125°C and has an impedance tolerance of ±25%. This single-line device is designed for high-frequency noise suppression in compact electronic circuits.

Chip Ferrite Bead Feature Summary

• Provides high impedance at 100 MHz for effective high-frequency noise attenuation
• Compact 0402 surface-mount footprint suitable for space-constrained designs
• Operates reliably across a wide industrial temperature range from -55°C to +125°C

Chip Ferrite Bead Applications

• High-frequency noise suppression in portable electronics
• Signal line filtering in telecommunications equipment
• EMI reduction in compact power conversion modules

Chip Ferrite Bead Procurement Notes

Verify the specific datasheet version for the HFB03-601-RC to confirm impedance characteristics and thermal ratings. Ensure compatibility with standard reflow soldering profiles for 0402 packages. Confirm that the 300 mA current rating meets the operational requirements of the target circuit to prevent saturation or excessive heating during use.

Chip Ferrite Bead Selection Notes

Select this component when a low-profile solution is required for high-frequency noise control. The 0402 size offers a balance between performance and board space efficiency. Consider the 700 mΩ DC resistance impact on voltage drop if used in low-voltage power lines. Verify that the 600 Ω impedance at 100 MHz aligns with the specific noise frequencies present in the application environment.

Chip Ferrite Bead Part Context

Allied Components International manufactures magnetic components including ferrite beads, transformers, and inductors. The HFB series represents their line of high-frequency ferrite beads designed for EMI suppression. These components are utilized in commercial and industrial markets for signal integrity improvement and noise reduction in various electronic assemblies.

Chip Ferrite Bead FAQ

What is the impedance value of the HFB03-601-RC at its rated frequency?

The impedance is 600 ohms at 100 MHz.

What is the maximum operating temperature for this ferrite bead?

The component operates up to +125°C.
