HFB075024-000

Overview

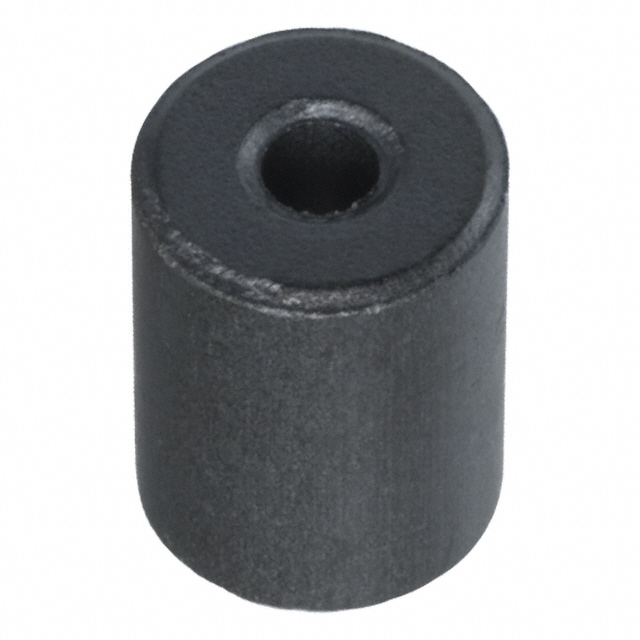

The HFB075024-000 is a solid free-hanging ferrite core manufactured by Laird-Signal Integrity Products. It provides an impedance of 124 Ohms at 300 MHz. The component features an inner diameter of 2.40 mm, an outer diameter of 7.50 mm, and a length of 10.00 mm.

Feature Summary

• Solid round design for direct cable installation
• High-frequency noise suppression capability

Applications

• Cable filtering
• EMI suppression on wires

Procurement Notes

Verify the specific impedance frequency rating (124 Ohms @ 300 MHz) against system requirements. Confirm physical dimensions match the target cable diameter of 2.40 mm inner bore. Ensure the solid construction meets mechanical constraints for the intended assembly environment.

Selection Notes

Select this component when a non-split, solid ferrite core is required for high-frequency noise attenuation. The 2.40 mm inner diameter dictates compatibility with specific wire gauges. Consider the 124 Ohm impedance value at 300 MHz for effective EMI reduction in the target frequency band.

Part Context

This part belongs to the category of solid free-hanging ferrite cores designed for cable applications. It serves as a passive filter element to suppress electromagnetic interference on conductors without requiring split housing mechanisms.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
