HFB095051-100

Overview

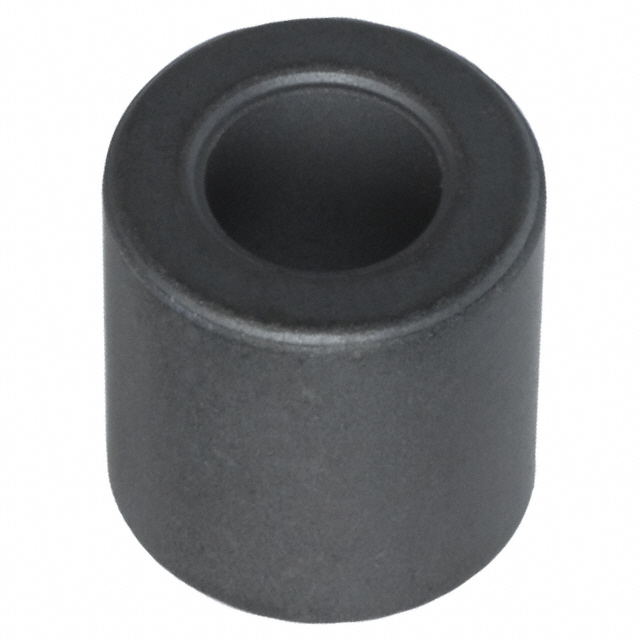

The HFB095051-100 is a solid free-hanging ferrite core manufactured by Laird-Signal Integrity Products. It provides an impedance of 64 Ohms at a test frequency of 300 MHz. The component features a cylindrical design with a length of 5.08 mm, intended for cable filtering applications.

Feature Summary

• Solid construction for durable cable mounting
• Free-hanging design allows easy installation on wires
• Provides 64 Ohm impedance at 300 MHz for EMI suppression

Applications

• Cable ferrite filtering
• EMI suppression on wiring harnesses
• RF noise reduction in signal cables

Procurement Notes

Verify the specific impedance requirement of 64 Ohms at 300 MHz against your design specifications. Confirm that the 5.08 mm length and solid core geometry fit the available space on the target cable assembly. Ensure compatibility with the cable diameter to guarantee a secure fit without excessive force.

Selection Notes

Select this component when a simple, robust solution for high-frequency noise attenuation is required. The solid core design eliminates the need for complex mounting hardware compared to split cores. Consider the 64 Ohm impedance value as sufficient for the targeted interference frequencies in your application.

Part Context

This part belongs to the HF series of ferrite cores from Laird-Signal Integrity Products. These components are designed specifically for suppressing electromagnetic interference on cables. Unlike chip beads, these are passive magnetic materials shaped for direct cable application rather than PCB mounting.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
