HFB143064-000

Overview

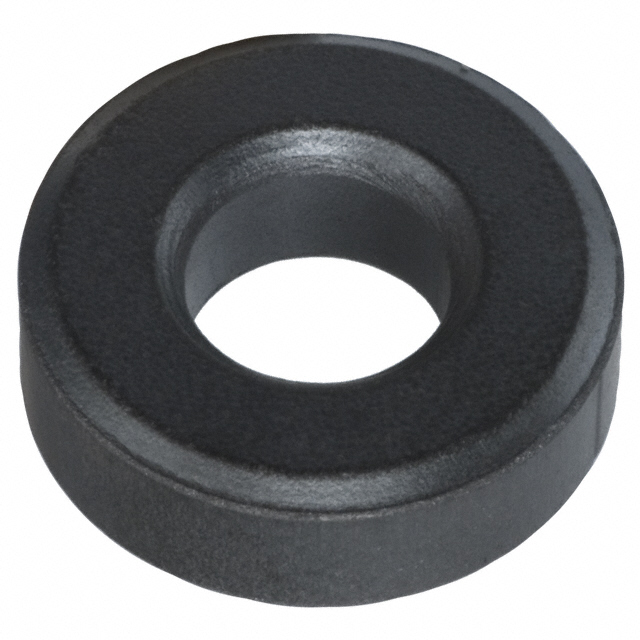

The HFB143064-000 is a solid free-hanging ferrite core manufactured by Laird-Signal Integrity Products. It features an inner diameter of 6.35 mm (0.250 inches) and an outer diameter of 14.27 mm (0.562 inches). The component has a length of 5.00 mm (0.197 inches) and provides an impedance of 43 Ohms at 300 MHz.

Feature Summary

• Solid design for cable and wiring applications
• Free-hanging form factor for easy installation

Applications

• Cable and wiring filtering
• EMI suppression on cables

Procurement Notes

Verify the specific impedance requirements against the datasheet, as ferrite performance varies with frequency. Confirm that the cable diameter falls within the 6.35 mm inner diameter specification to ensure a proper fit. Check for RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this component when a solid, non-split ferrite core is needed for cables up to 6.35 mm in diameter. Ensure the application requires the specific impedance profile provided at 300 MHz. Consider the physical dimensions to verify clearance in the final assembly.

Part Context

This part belongs to the category of passive components, specifically ferrite cores used for electromagnetic interference (EMI) suppression. It is designed to be slipped onto cables or wires to attenuate high-frequency noise without requiring soldering or complex mounting hardware.

Replacement Considerations

No public confirmed substitute part numbers are available.
