HFB143064-300

Overview

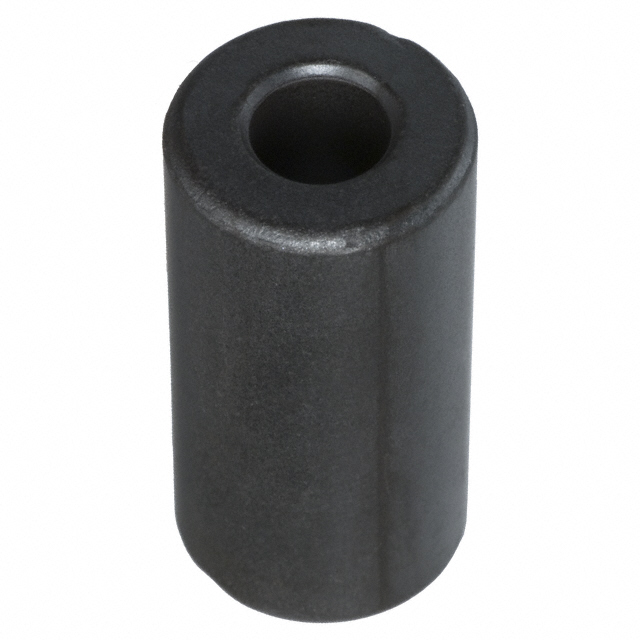

The HFB143064-300 is a solid round cable ferrite core manufactured by Laird-Signal Integrity Products. It provides an impedance of 270 Ohms at 300 MHz and features an inner diameter of 6.35 mm (0.250 inches) and an outer diameter of 14.27 mm (0.562 inches). The component has a length of 28.58 mm (1.125 inches) and utilizes a free-hanging installation type.

Feature Summary

• Solid construction for robust electromagnetic interference suppression
• High impedance performance at 300 MHz frequency
• Free-hanging design suitable for cable wrapping

Applications

• Cable filtering in electronic assemblies
• Electromagnetic interference suppression on wires
• Signal integrity enhancement in high-frequency circuits

Procurement Notes

Verify the specific impedance value of 270 Ohms at 300 MHz against your design requirements. Confirm that the 6.35 mm inner diameter accommodates your cable size. Ensure the 28.58 mm length fits within your spatial constraints. Check RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this component when high attenuation is needed at 300 MHz. The solid design offers durability compared to split cores. Ensure the cable diameter does not exceed 6.35 mm. Consider the physical length of 28.58 mm for assembly layout. Verify compatibility with free-hanging mounting methods.

Part Context

This part belongs to the HFB series of cable ferrites from Laird-Signal Integrity Products. These components are designed for suppressing common-mode noise on cables. The series includes various impedance values and dimensions to suit different cable sizes and frequency requirements.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
