HFB150070-200

Overview

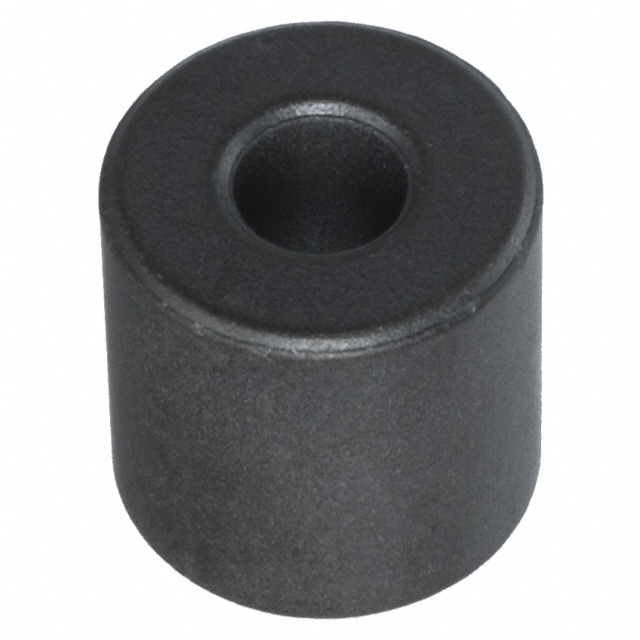

The HFB150070-200 is a solid round ferrite cable core manufactured by Laird-Signal Integrity Products. It provides an impedance of 242 Ohms at 300 MHz, designed for electromagnetic interference suppression. The component features a high-frequency material composition with an inside diameter of 6.99 mm and an outside diameter of 14.99 mm. This free-hanging design allows for direct installation onto cables without additional mounting hardware.

Feature Summary

• Solid construction for effective high-frequency noise attenuation
• Free-hanging design suitable for direct cable integration
• High-frequency material optimized for EMI suppression

Applications

• Electromagnetic interference suppression on signal cables
• Noise reduction in high-frequency data transmission lines
• Cable integrity enhancement in electronic assemblies

Procurement Notes

Verify the specific impedance value and frequency rating against the official datasheet to ensure compatibility with the target application's noise profile. Confirm that the inner diameter matches the cable size precisely to maintain secure fitment. Check RoHS compliance status if required by project specifications. Ensure the solid core design meets mechanical constraints for the intended assembly environment.

Selection Notes

Select this component when a fixed impedance solution is required for broadband noise suppression. The 242 Ohm rating at 300 MHz makes it suitable for specific high-frequency interference scenarios. Consider the physical dimensions to ensure adequate clearance within the enclosure. Evaluate the solid core construction against snap-on alternatives for durability requirements.

Part Context

This part belongs to the HFB series of round cable cores from Laird-Signal Integrity Products. These components are engineered for signal integrity applications where consistent impedance characteristics are critical. The series offers various impedance values and dimensions to address diverse cable management needs across industrial and commercial electronics.

Replacement Considerations

Direct substitutes must match the 242 Ohm impedance at 300 MHz and the 6.99 mm inner diameter. Verify material composition and outer dimensions for mechanical interchangeability. Consult manufacturer cross-reference lists for equivalent parts with identical electrical performance profiles.
