HFB152034-000

Overview

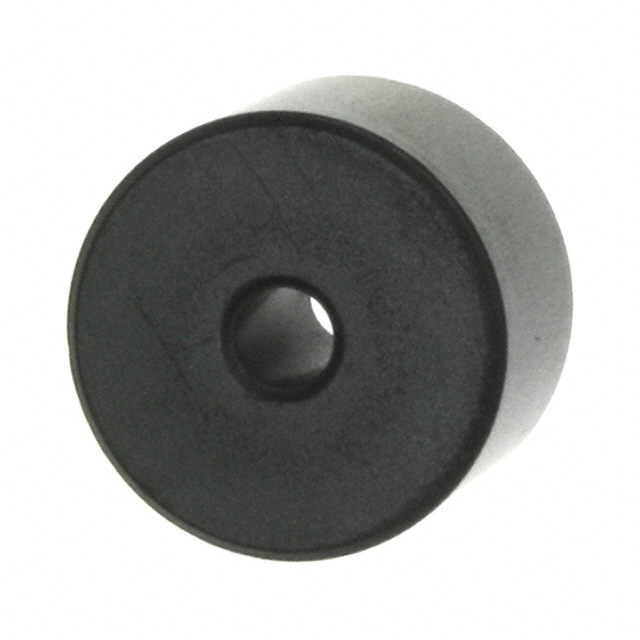

The HFB152034-000 is a solid free-hanging ferrite core manufactured by Laird-Signal Integrity Products, designed for electromagnetic interference suppression on round cables. It exhibits an impedance of 165 Ohms at 300 MHz. The component features an inside diameter of 0.133 inches (3.38 mm), an outside diameter of 0.600 inches (15.24 mm), and a length of 0.394 inches (10.00 mm).

Feature Summary

• Solid construction provides stable EMI suppression characteristics for cable applications.
• Free-hanging design allows for easy installation around existing round cables without disconnection.

Applications

• Electromagnetic interference filtering for round cables
• High-frequency noise suppression in signal lines
• Cable assembly EMI mitigation

Procurement Notes

Verify the specific impedance value and frequency rating against your system requirements before procurement. Confirm that the physical dimensions, particularly the inner diameter, are compatible with the target cable size. Ensure the component meets all necessary regulatory standards for your intended market application.

Selection Notes

Select this component when a non-invasive solution for suppressing high-frequency noise on round cables is required. The 165 Ohm impedance at 300 MHz makes it suitable for specific high-frequency EMI scenarios. Ensure the cable diameter falls within the 3.38 mm inner diameter tolerance for proper fit and performance.

Part Context

This ferrite core belongs to Laird-Signal Integrity Products' range of passive components focused on signal integrity and EMI management. It serves as a critical element in maintaining electromagnetic compatibility in electronic systems by attenuating unwanted high-frequency signals on cabling.

Replacement Considerations

Direct substitutes must match the 165 Ohm @ 300 MHz impedance and identical physical dimensions (ID 3.38mm, OD 15.24mm, Length 10.00mm). Verify material composition and frequency response curves to ensure equivalent attenuation performance.

FAQ

What is the impedance of the HFB152034-000 at its rated frequency?

The impedance is 165 Ohms at 300 MHz.

What type of cable is this ferrite core designed for?

It is designed for round cables with an inner diameter of 0.133 inches (3.38 mm).
