HFB160093-300

Overview

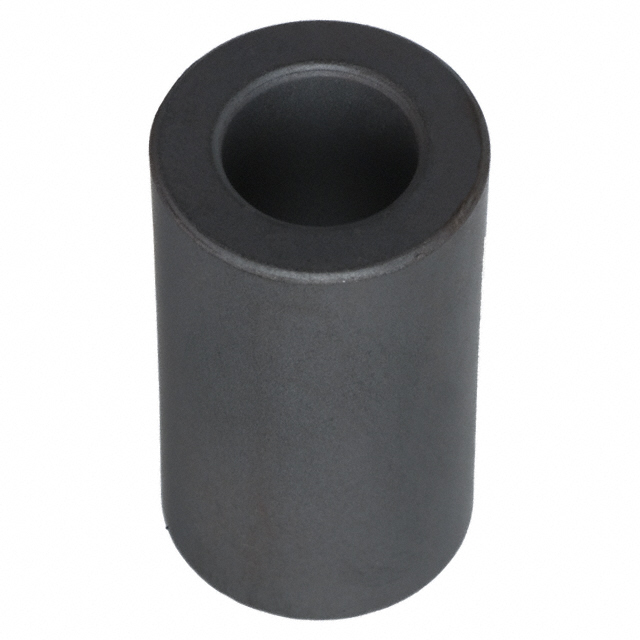

The HFB160093-300 is a solid round cylindrical ferrite cable core manufactured by Laird-Signal Integrity Products. It features an inner diameter of 9.25 mm and an outer diameter of 16.00 mm, with a total length of 10 mm. The component exhibits an impedance of 170 Ohms at a test frequency of 300 MHz. Constructed from HF material, it serves as a passive electromagnetic interference suppression element for cables passing through its central aperture.

Feature Summary

• Solid round cylindrical design for secure cable mounting
• High-frequency HF material composition for stable performance
• Integrated EMI suppression capability via inductive impedance

Applications

• Cable assembly noise reduction
• Electromagnetic interference filtering
• Signal integrity enhancement in high-speed data lines

Procurement Notes

Verify the specific impedance value and physical dimensions against your schematic requirements before ordering. Confirm that the inner diameter accommodates the target cable bundle without excessive clearance. Check RoHS compliance status if required by your manufacturing standards. Ensure the supplier provides official datasheets to validate material specifications.

Selection Notes

Select this component when a 170 Ohm impedance at 300 MHz is required for EMI suppression. The 9.25 mm inner diameter dictates the maximum cable size. Consider the solid construction for durability during installation. Compare alternative impedances if the noise spectrum differs significantly from the 300 MHz test point.

Part Context

This part belongs to the HFB series of ferrite cores, designed for signal integrity applications. It complements other Laird components used in thermal management and shielding. The product line focuses on protecting electronic devices from electromagnetic disturbances while maintaining structural integrity in compact assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Verify compatibility with existing designs carefully if sourcing alternatives.
