HFC03-15NJ-RC

Fixed Inductors Overview

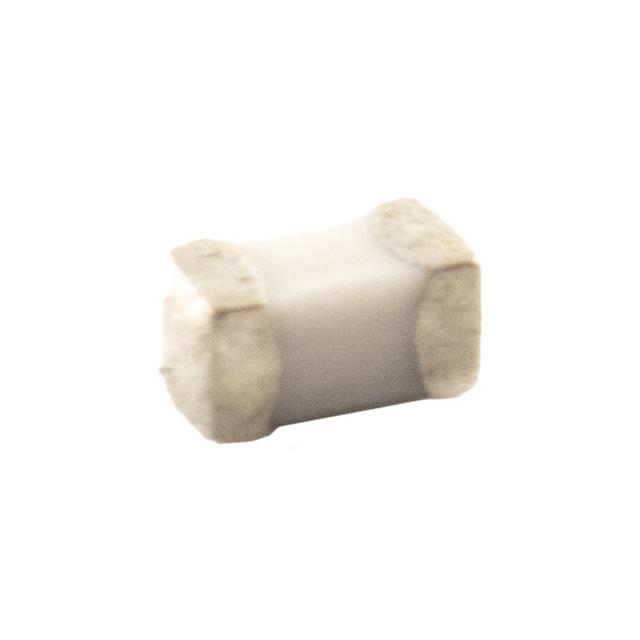

The HFC03-15NJ-RC is a high-frequency chip inductor manufactured by Allied Components International. It utilizes monolithic construction within an EIA 0805 package, designed for high board density applications. The component provides an inductance of 15nH with a J tolerance (±5%). It features excellent Q and SRF characteristics suitable for high-frequency circuits. Electrical parameters are measured at 100MHz using HP4291A and HP16197A equipment. The device operates within a temperature range of -55°C to +125°C.

Fixed Inductors Feature Summary

• Monolithic construction for cost-effective high-frequency performance
• EIA 0805 footprint optimized for high board density
• High Q and SRF characteristics for RF applications

Fixed Inductors Applications

• High frequency circuit filtering
• RF signal processing
• High density PCB layouts

Fixed Inductors Procurement Notes

Verify the specific manufacturer designation as Allied Components International against the provided source data which lists Allied Electronics. Confirm the exact inductance value and tolerance suffix match the required design specifications. Ensure the operating temperature range meets the environmental requirements of the target application before finalizing procurement.

Fixed Inductors Selection Notes

Select this component when a compact 0805 form factor is required for high-frequency signal integrity. The 15nH value suits specific impedance matching or filtering needs in RF designs. Consider the ±5% tolerance for precision applications. Verify compatibility with standard pick-and-place assembly processes due to the surface mount package type.

Fixed Inductors Part Context

This part belongs to the HFC series of high-frequency chip inductors. The series offers various inductance values ranging from 1.0nH to 470nH in the 0805 size. Different tolerance options including K (10%), J (5%), and S (±0.3nH) are available across the series to accommodate varying circuit precision requirements.

Fixed Inductors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other 0805 high-frequency inductors only if electrical parameters and physical dimensions are identical.
