HFC05-100NJ-RC

Fixed Inductors Overview

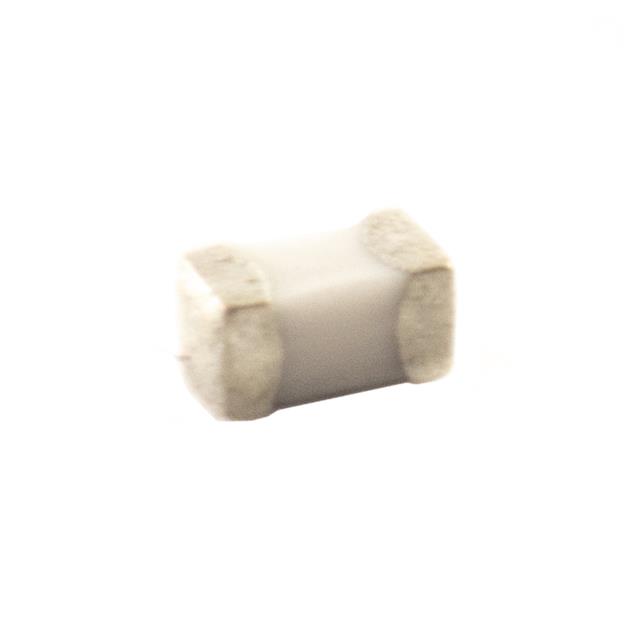

The HFC05-100NJ-RC is a high-frequency chip inductor manufactured by Allied Components International. It features an inductance of 100nH with a tolerance of ±5%. The component operates within the 0603 surface-mount package, providing a typical Q factor of 12 at 100MHz and a self-resonant frequency (SRF) of 770MHz. Its maximum DC resistance is specified at 300mA current rating.

Fixed Inductors Feature Summary

• Monolithic construction designed for high board density applications
• Optimized Q and SRF characteristics for high-frequency signal integrity
• Cost-effective surface-mount design suitable for automated assembly

Fixed Inductors Applications

• High-frequency filtering circuits
• RF impedance matching networks
• Signal processing stages requiring compact inductance

Fixed Inductors Procurement Notes

Verify the specific suffix 'J' confirms the ±5% tolerance requirement against your schematic specifications. Ensure the 0603 footprint matches your PCB layout constraints. Confirm RoHS compliance status if required by your manufacturing standards. Cross-reference the 100nH value with circuit simulation results to validate performance at target frequencies.

Fixed Inductors Selection Notes

Select this component when a precise 100nH inductance with tight ±5% tolerance is required for high-frequency operations. The 0603 package offers a balance between size and performance for dense layouts. Consider the 770MHz SRF limit to ensure the component remains inductive within your operating bandwidth. Evaluate the 300mA current rating against peak load requirements to prevent saturation.

Fixed Inductors Part Context

This part belongs to the HFC05 series of high-frequency chip inductors from Allied Components International. The series utilizes monolithic construction to deliver consistent electrical performance across various inductance values. The HFC05 line is engineered specifically for applications demanding high Q factors and stable self-resonant frequencies in compact form factors.

Fixed Inductors Replacement Considerations

Direct substitutes must match the 100nH inductance, ±5% tolerance, and 0603 package dimensions. Verify that alternative components offer comparable SRF and Q characteristics at 100MHz to maintain circuit stability. Ensure the replacement supports the same thermal and current ratings.
