HFCG-880+

Overview

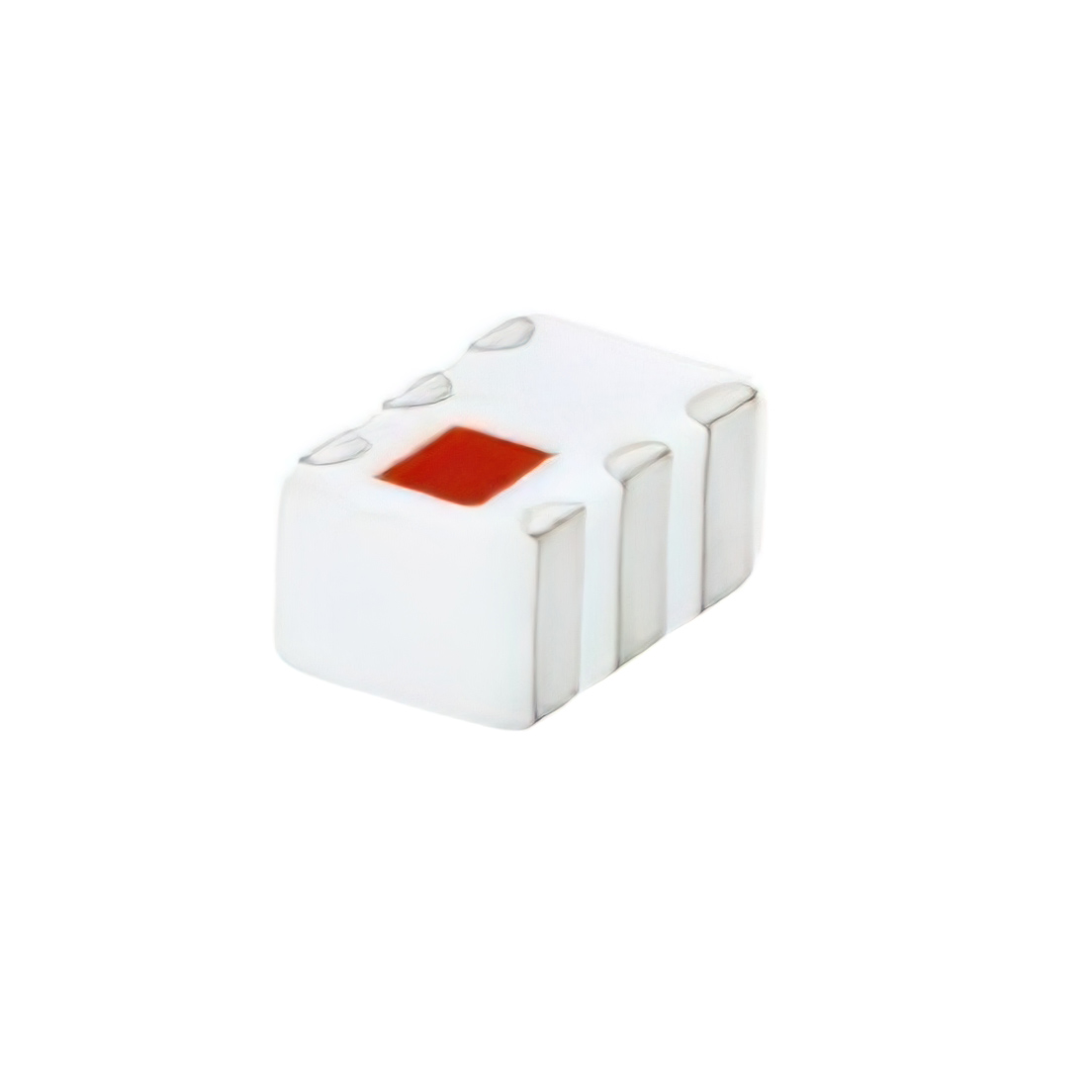

The HFCG-880+ is a miniature high pass filter manufactured by Mini-Circuits, designed for RF and microwave applications. It utilizes Low Temperature Co-fired Ceramic (LTCC) technology to provide rugged construction suitable for dense PCB layouts with minimal performance variation due to parasitics. The component operates as a surface mount device in an 0805 package. Key electrical specifications include a cutoff frequency range of 990 MHz to 8000 MHz, a center frequency of 4.495 GHz, a bandwidth of 7.01 GHz, and an insertion loss of 1.3 dB.

Feature Summary

• Constructed using LTCC technology for ruggedness and stability in dense PCB layouts
• Designed as a high pass filter to block lower frequencies while passing higher signals
• Utilizes surface mount packaging for automated assembly compatibility

Applications

• RF signal conditioning in communication systems
• Microwave circuit design requiring high pass filtering
• Integration into dense PCB layouts where parasitic minimization is critical

Procurement Notes

Verify the specific datasheet version for the HFCG-880+ to confirm current manufacturing status and exact electrical tolerances. Ensure that the 0805 footprint dimensions align with your PCB layout constraints. Confirm that the LTCC construction meets the environmental requirements of your target application. Cross-reference the insertion loss and bandwidth specifications against system requirements before finalizing procurement decisions.

Selection Notes

Select the HFCG-880+ when a high pass filter with a cutoff starting near 990 MHz is required. Consider this component for applications needing rugged LTCC construction to handle mechanical stress. Evaluate the 1.3 dB insertion loss against system power budgets. The 0805 surface mount package is suitable for space-constrained designs. Verify that the 7.01 GHz bandwidth covers the necessary operational spectrum.

Part Context

Mini-Circuits specializes in RF, IF, and microwave components ranging from DC to 86 GHz. The HFCG series represents their line of miniature LTCC filters. These components are engineered for reliability in demanding environments. The HFCG-880+ fits within this portfolio as a specialized high pass solution. Mini-Circuits emphasizes minimal performance variation due to parasitics in their LTCC designs.

FAQ

What is the primary function of the HFCG-880+?

It functions as a high pass filter, allowing frequencies above approximately 990 MHz to pass while attenuating lower frequencies.

What package type does the HFCG-880+ use?

The component uses an 0805 surface mount package with a 6-pad configuration.
