HFCV-2002+

Overview

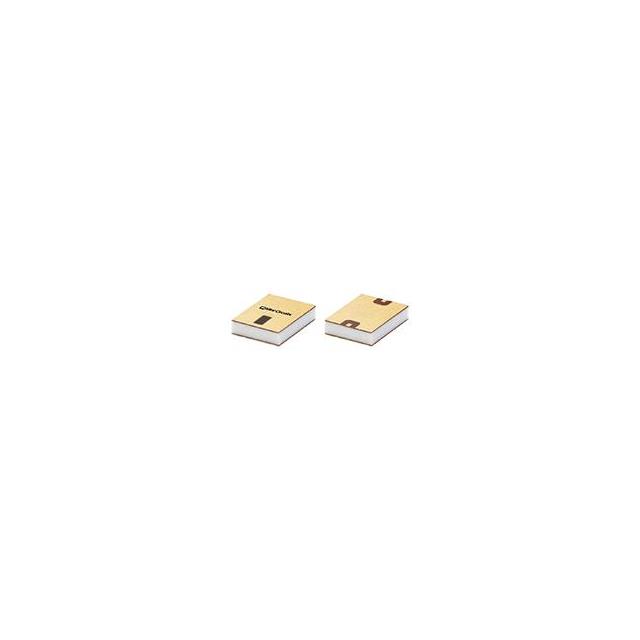

The HFCV-2002+ is a miniature Low-Temperature Co-fired Ceramic (LTCC) high pass filter designed for dense system-on-module applications. It operates within a passband of 19.6 GHz to 47 GHz. The component features a robust monolithic structure that ensures reliability in demanding environments. Typical electrical performance includes an insertion loss of 1.6 dB, a return loss of 10 dB, and stop band rejection of 21 dB.

Feature Summary

• Constructed using Low-Temperature Co-fired Ceramic (LTCC) technology for compact form factor
• Provides high-frequency signal filtering with defined passband characteristics
• Features a robust monolithic design suitable for surface mount integration

Applications

• Dense system-on-module designs
• RF signal conditioning circuits
• High frequency communication systems

Procurement Notes

Verify the specific datasheet version and ordering suffix when sourcing. Confirm that the required operating frequency range aligns with the 19.6 GHz to 47 GHz specification. Ensure compatibility with standard LTCC surface mount assembly processes. Check for any specific handling requirements associated with ceramic components.

Selection Notes

Select this component when a compact high pass filter is needed for frequencies above 19.6 GHz. The LTCC construction offers a small footprint ideal for space-constrained PCB layouts. Consider the typical insertion loss and rejection levels to ensure they meet system noise floor and interference requirements.

Part Context

This part belongs to Mini-Circuits' line of RF filters utilizing LTCC technology. These components are engineered for high performance in microwave and millimeter-wave applications. The series provides reliable signal filtering solutions for modern electronic systems requiring miniaturization.

Replacement Considerations

Consult official Mini-Circuits documentation for direct substitutes. Verify that alternative parts match the 19.6 GHz to 47 GHz passband and LTCC package dimensions.
