HFQ02-1N0C-RC

Fixed Inductors Overview

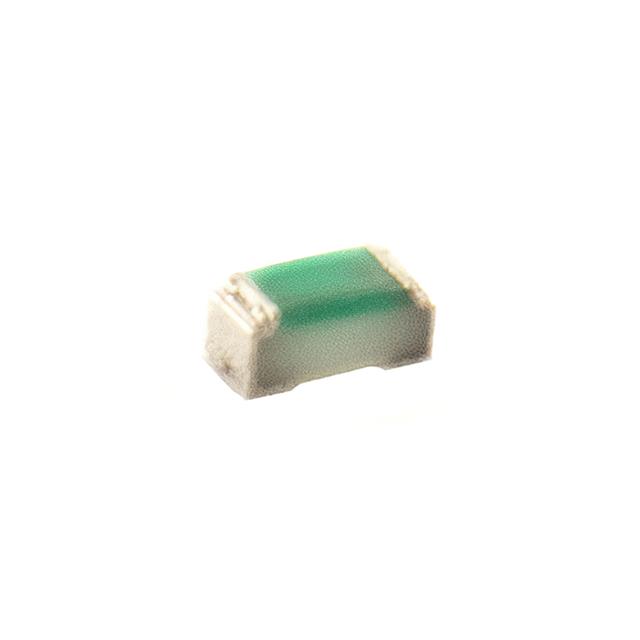

The HFQQ02-1N0C-RC is a high-frequency, high-Q chip inductor manufactured by Allied Components International. It utilizes a multilayer ceramic core construction and is housed in a compact 0201 surface-mount package. The component provides an inductance of 1 nH with a tolerance of +/-0.1nH. It is designed for applications requiring precise impedance matching and noise suppression in RF circuits. The device is lead-free and RoHS compliant.

Fixed Inductors Feature Summary

• Multilayer ceramic core construction for stable high-frequency performance
• High Q factor suitable for RF signal integrity
• Compact 0201 surface-mount footprint for space-constrained designs

Fixed Inductors Applications

• RF circuit impedance matching networks
• High-frequency signal filtering
• Noise suppression in compact electronic assemblies

Fixed Inductors Procurement Notes

Verify the specific suffix 'C' against the manufacturer's datasheet to confirm the exact tolerance and packaging configuration. Ensure the selected variant matches the required inductance value and frequency characteristics for the target application. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a very low inductance value near 1 nH is required for high-frequency operation. The 0201 package size is ideal for dense PCB layouts. Consider the typical Q factor at operating frequencies to ensure sufficient efficiency for the specific RF application. Verify that the DC resistance meets the power handling requirements of the circuit.

Fixed Inductors Part Context

This part belongs to the HFQ02 series of high-frequency chip inductors from Allied Components International. The series offers various inductance values and tolerances within the 0201 package. These components are designed to replace discrete wire-wound inductors in modern surface-mount assembly processes, providing consistent electrical characteristics for mass production.

Fixed Inductors Replacement Considerations

Consult the official datasheet for direct pin-compatible substitutes within the same series. Verify that any alternative component maintains the same 1 nH inductance and 0201 package dimensions. Ensure the replacement part meets or exceeds the original Q factor and SRF specifications for the intended frequency range.
