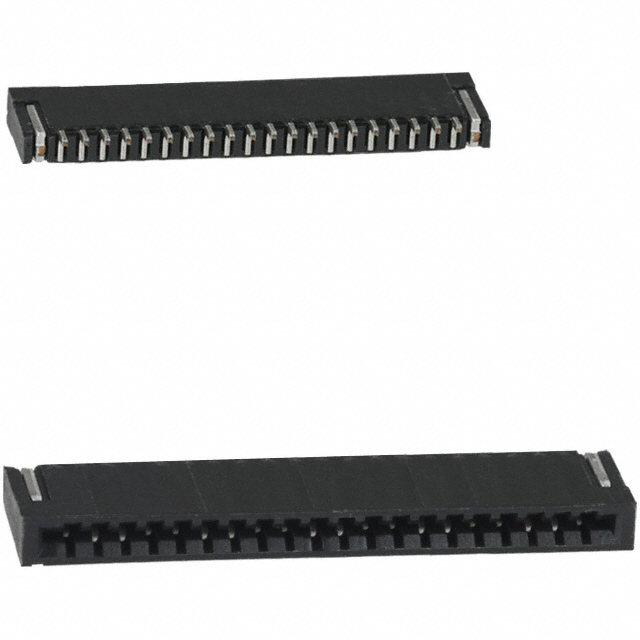

FFC, FPC (Flat Flexible) Connector Assemblies HFW20R-1STE1LF product image

HFW20R-1STE1LF

$0.32

Description：CONN FFC FPC BOTTOM 20POS 1MM RA
Series：HFW-R
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:860f855bc5e7 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HFW20R-1STE1LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC BOTTOM 20POS 1MM RA. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for HFW20R-1STE1LF

Description：CONN FFC FPC BOTTOM 20POS 1MM RA
Series：HFW-R
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：20
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.075" (1.90mm)
Locking Feature：-
Cable End Type：Straight or Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Polyamide (PA6T), Nylon 6T, Glass Filled
Actuator Material：-
Features：-
Voltage Rating：100V
Operating Temperature：-55°C ~ 105°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for HFW20R-1STE1LF

HFW20R-1STE1LF
