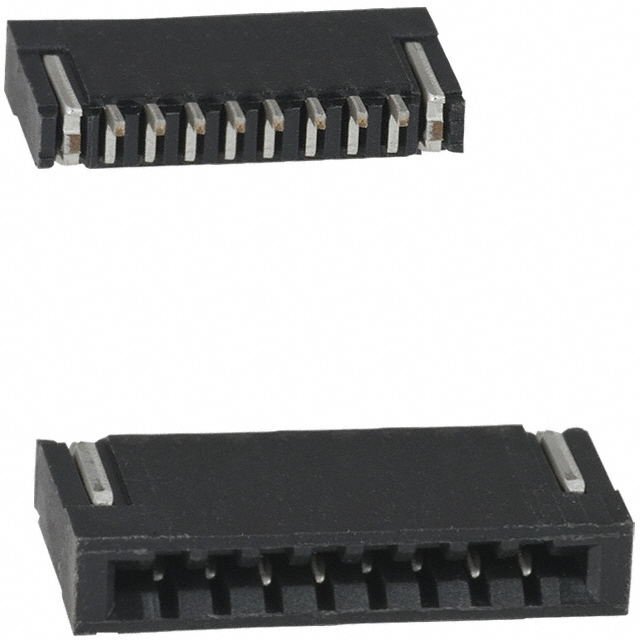

HFW8R-1STE1

HFW8R-1STE1 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC BOTTOM 8POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for HFW8R-1STE1

• Description：CONN FFC FPC BOTTOM 8POS 1MM R/A
• Series：HFW-R
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：8
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.075" (1.90mm)
• Locking Feature：-
• Cable End Type：Straight or Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Tin Alloy
• Housing Material：Polyamide (PA6T), Nylon 6T, Glass Filled
• Actuator Material：-
• Features：-
• Voltage Rating：100V
• Operating Temperature：-55°C ~ 105°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for HFW8R-1STE1
