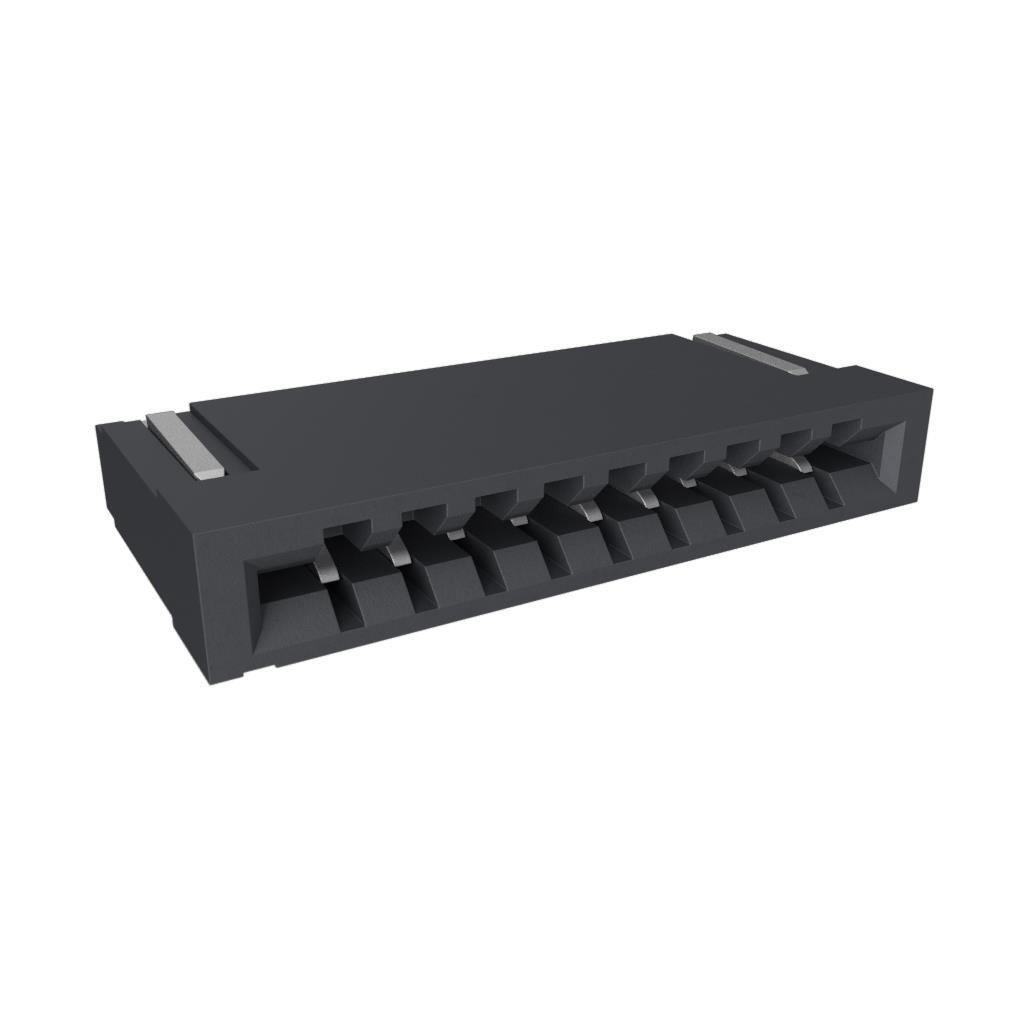

FFC, FPC (Flat Flexible) Connector Assemblies HFW9R-1STGE1H1LF product image

HFW9R-1STGE1H1LF

$0.16

Description：FFC/FPC FLEX CONN
Series：HFW
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:ba9a59528b26 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HFW9R-1STGE1H1LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is FFC/FPC FLEX CONN. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for HFW9R-1STGE1H1LF

Description：FFC/FPC FLEX CONN
Series：HFW
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：9
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.075" (1.90mm)
Locking Feature：-
Cable End Type：Straight
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：-
Features：-
Voltage Rating：100V
Operating Temperature：-55°C ~ 105°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for HFW9R-1STGE1H1LF

HFW9R-1STGE1H1LF
