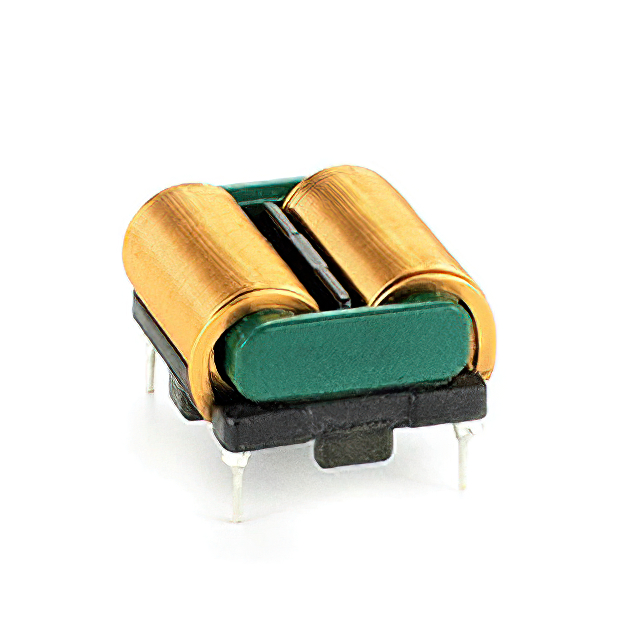

HFWLF2418-402

$4.89

Description：CMC 4MH 5.4A 2LN TH
Series：-
Mfr：Allied Components International
Package：Box

SKU:7ba5cf093128 Category: Common Mode Chokes Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HFWLF2418-402 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Allied Components International. Its product description is CMC 4MH 5.4A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HFWLF2418-402

Description：CMC 4MH 5.4A 2LN TH
Series：-
Mfr：Allied Components International
Package：Box
Filter Type：-
Number of Lines：2
Current Rating (Max)：5.4A
DC Resistance (DCR) (Max)：80mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.043" L x 0.945" W (26.50mm x 24.00mm)
Height (Max)：0.610" (15.50mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：4 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for HFWLF2418-402

HFWLF2418-402

Common Mode Chokes Overview

The HFWLF2418-402 is a through-hole common mode choke manufactured by Allied Components International. It features a 4 mH inductance and supports a current rating of 5.4 A. The component utilizes a two-line configuration for noise suppression. Physical dimensions are specified as 1.043 inches in length by 0.945 inches in width, equivalent to 26.50 mm by 24.00 mm. The device is RoHS compliant and lead-free.

Common Mode Chokes Feature Summary

Through-hole mounting technology for standard PCB integration
Two-line common mode noise filtering capability
RoHS compliant and lead-free construction

Common Mode Chokes Applications

Power conversion circuits
Telecommunications equipment
Networking hardware

Common Mode Chokes Procurement Notes

Verify the specific manufacturer datasheet for detailed electrical characteristics and mechanical drawings before finalizing design integration. Confirm that the through-hole package dimensions align with the target printed circuit board layout. Ensure compliance with relevant environmental regulations for the intended market. Cross-reference the part number with official distributor catalogs to confirm current availability status and authenticity of the supply source.

Common Mode Chokes Selection Notes

Select this component when a high-current common mode choke is required for through-hole assembly. The 5.4 A rating suits applications demanding significant current handling capacity. Verify that the physical footprint matches the available board space. Consider the inductance value relative to the target noise frequency spectrum. Ensure the operating temperature range meets the system requirements.

Common Mode Chokes Part Context

Allied Components International designs and manufactures industry-standard and custom magnetic components. This product falls within their portfolio of power conversion and telecommunications filters. The company specializes in both standard and custom solutions for commercial and industrial markets. Their focus includes providing quality magnetic modules for various electronic applications.
