HG-1742DP-17EG-NF

$171.77

Description：1.7-4.2GHZ 17DBI 1FT MIMO GRID A
Series：HG
Mfr：L-com
Package：Bag

SKU:cf7312d6bd34 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG-1742DP-17EG-NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is 1.7-4.2GHZ 17DBI 1FT MIMO GRID A. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG-1742DP-17EG-NF

Description：1.7-4.2GHZ 17DBI 1FT MIMO GRID A
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Cellular, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：2.2GHz, 3.75GHz
Frequency Range：1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz
Antenna Type：Dish
Number of Bands：2
VSWR：2.5
Return Loss：-
Gain：17dBi, 19dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：N Type Female (2)
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：7.600" (193.04mm)
Applications：802.11b/g/n, 5G, CBRES, DAS, LTE, Wi-Fi
Power - Max：50 W

Antennas RF datasheet and documents for HG-1742DP-17EG-NF

HG-1742DP-17EG-NF

Antennas RF Overview

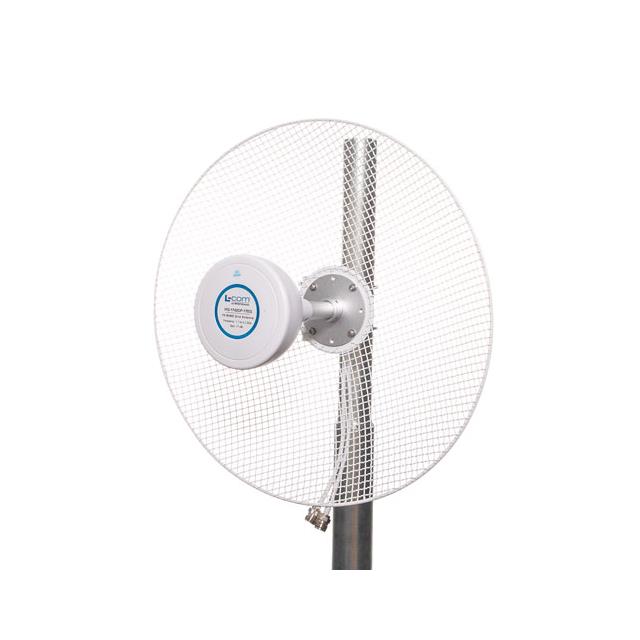

The L-com HG-1742DP-17EG-NF is a high-performance LTE and CBRS mesh parabolic dish antenna designed for cellular networks. It operates within the 1710 to 4200 MHz frequency range, providing a gain of 17 dBi. The unit features a 2x2 MIMO configuration and utilizes N female connectors. Constructed as a grid antenna with a 1-foot diameter, it supports multi-band applications essential for robust wireless signal transmission in demanding environments.

Antennas RF Feature Summary

High-gain parabolic dish design optimized for cellular network performance
Dual-band operation supporting both LTE and CBRS spectrum allocations
Integrated 2x2 MIMO architecture for enhanced signal reliability

Antennas RF Applications

Cellular LTE network infrastructure deployment
CBRS (Citizens Broadband Radio Service) mesh networking
Outdoor wireless signal broadcasting and reception

Antennas RF Procurement Notes

Verify that the specific model suffix matches the required connector type and frequency specifications. Confirm regulatory compliance status for the intended geographic region prior to installation. Ensure mounting hardware compatibility with existing structural supports to maintain proper alignment and signal integrity during operation.

Antennas RF Selection Notes

Select this component when a directional solution is required for frequencies between 1710 and 4200 MHz. The 17 dBi gain offers significant signal focus compared to omnidirectional alternatives. Consider the N female interface for standard coaxial cable integration in fixed outdoor installations requiring high directivity.

Antennas RF Part Context

This antenna belongs to L-com's HG series of high-gain mesh parabolic dishes. These components are engineered specifically for long-range point-to-point or point-to-multipoint links in cellular and broadband wireless applications. The series emphasizes durability and precise beamforming capabilities for consistent network coverage.
