HG-1742DP-20EG-NM

Antennas RF Overview

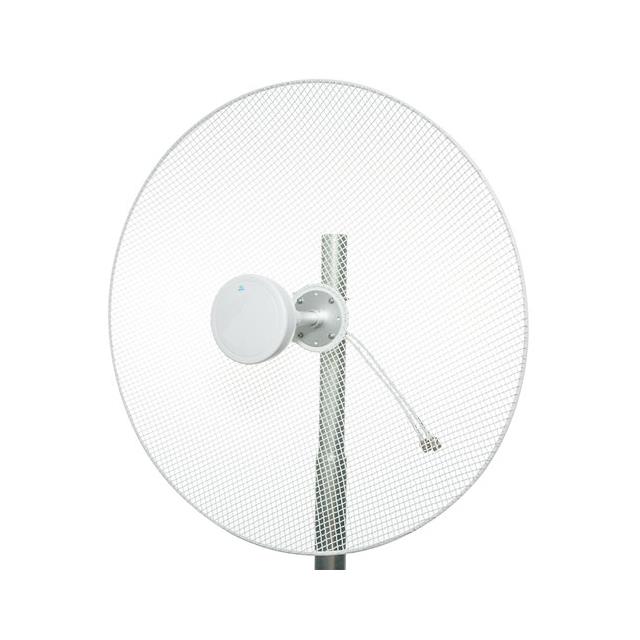

The L-com HG-1742DP-20EG-NM is a high-performance MIMO grid antenna designed for outdoor point-to-point communication. It operates within the 1710 to 4200 MHz frequency range, providing a gain of 20 dBi. The unit features an N-type male connector and includes a 2-foot cable length. This component supports 2x2 MIMO configurations and is engineered for cellular LTE and CBRS network applications.

Antennas RF Feature Summary

• High-gain directional design optimized for long-range point-to-point links
• Multi-band operation supporting LTE, CBRS, and 5G frequencies
• Robust construction suitable for outdoor environmental conditions

Antennas RF Applications

• Cellular LTE signal broadcasting
• CBRS network infrastructure deployment
• Point-to-point wireless mesh communication

Antennas RF Procurement Notes

Verify the specific connector gender and cable length requirements against project specifications before ordering. Confirm that the 20 dBi gain aligns with link budget calculations for the intended distance. Ensure compatibility with existing mounting hardware for outdoor installation. Check local regulatory compliance for the 1710-4200 MHz band usage in the target region.

Antennas RF Selection Notes

Select this model when high directivity and gain are required for fixed wireless links. It is appropriate for replacing older grid antennas in LTE or CBRS networks. Consider the N-type connector interface for compatibility with standard RF cabling. Evaluate the 2-foot cable length as a potential limitation requiring extension cables if remote placement is necessary.

Antennas RF Part Context

This part belongs to L-com's HG series of high-performance outdoor antennas. It is specifically categorized for cellular and broadband wireless applications. The product line focuses on durable, weather-resistant designs for reliable long-distance data transmission in challenging environments.

Antennas RF Replacement Considerations

The HG-1742DP-20EG-NF is a confirmed substitute variant from the same manufacturer. Differences may exist in connector type or specific cable assembly details. Verify mechanical dimensions and electrical performance equivalence before swapping components in existing installations.
