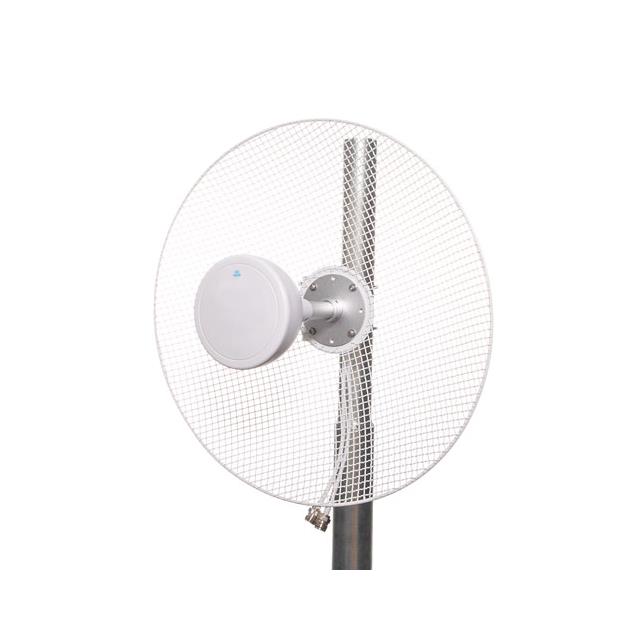

HG-2327DP-17EG-NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is 2.3-2.7GHZ 17DBI 1FT MIMO GRID A. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG-2327DP-17EG-NF
- Description：2.3-2.7GHZ 17DBI 1FT MIMO GRID A
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.5GHz
- Frequency Range：2.3GHz ~ 2.7GHz
- Antenna Type：Dish
- Number of Bands：1
- VSWR：2.5
- Return Loss：-
- Gain：17dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：N Type Female (2)
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：2.600" (66.04mm)
- Applications：802.11b/g/n, ISM, Wi-Fi, WLAN
- Power - Max：50 W
Antennas RF datasheet and documents for HG-2327DP-17EG-NF
Antennas RF Overview
The L-com HG-2327DP-17EG-NF is a high-performance WiFi Mesh Parabolic Dish antenna designed for cellular networks. It operates within the 2300 to 2700 MHz frequency range and provides a gain of 17 dBi. The unit features a 2x2 MIMO configuration with two Type N Female connectors. The physical dimensions are specified as 1 foot in length.
Antennas RF Feature Summary
- Engineered specifically for cellular network applications
- Utilizes parabolic dish design for directional signal focus
- Supports 2x2 MIMO technology for enhanced data throughput
Antennas RF Applications
- Cellular network infrastructure deployment
- WiFi mesh networking systems
- Point-to-point communication links
Antennas RF Procurement Notes
Verify that the specific application requires the 2300-2700 MHz frequency band and 17 dBi gain specifications. Confirm compatibility with existing Type N Female connector interfaces on the host equipment. Ensure the installation environment supports the directional requirements of a parabolic dish antenna for optimal performance.
Antennas RF Selection Notes
Select this model when cellular network integration or WiFi mesh connectivity is required in the 2.3-2.7 GHz spectrum. Consider the 17 dBi gain level against site-specific path loss calculations. Evaluate the need for MIMO capabilities versus single-input single-output alternatives based on bandwidth requirements.
Antennas RF Part Context
This component belongs to L-com's HG series of high-gain parabolic dish antennas. These units are typically utilized in wireless backhaul and access scenarios where long-range, focused transmission is necessary. The series includes variants with different gain levels and lengths to suit various deployment scales.
Antennas RF Replacement Considerations
For higher gain requirements, consider the HG-2327DP-22EG-NF which offers 22 dBi. Verify that substitute models maintain the same 2x2 MIMO architecture and Type N Female connector interface to ensure mechanical and electrical compatibility.
