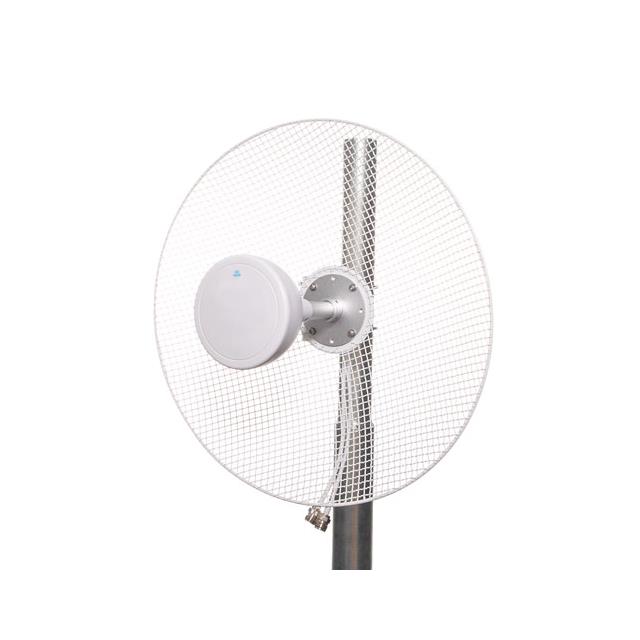

HG-2327DP-17EG-NM is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is 2.3-2.7GHZ 17DBI 1FT MIMO GRID A. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG-2327DP-17EG-NM
- Description：2.3-2.7GHZ 17DBI 1FT MIMO GRID A
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.5GHz
- Frequency Range：2.3GHz ~ 2.7GHz
- Antenna Type：Dish
- Number of Bands：1
- VSWR：2.5
- Return Loss：-
- Gain：17dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：N Type Male (2)
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：2.600" (66.04mm)
- Applications：802.11b/g/n, ISM, Wi-Fi, WLAN
- Power - Max：50 W
Antennas RF datasheet and documents for HG-2327DP-17EG-NM
Antennas RF Overview
The L-com HG-2327DP-17EG-NM is a high-density fiber optic cable assembly designed for data center and telecommunications infrastructure. It features MPO connectors with guide pins on both ends, supporting Type B polarity configuration. The cable utilizes OM5 multimode optical fiber with 50/125um core/cladding dimensions to enable extended wavelength multiplexing capabilities across the 850nm to 1625nm spectrum. Constructed with a low smoke zero halogen (LSZH) jacket in lime green, it ensures safety in enclosed environments. This assembly provides robust connectivity for high-speed parallel optical links.
Antennas RF Feature Summary
- Supports OM5 extended wavelength multiplexing for enhanced bandwidth capacity
- Features MPO connectors with guide pins for precise alignment and secure mating
- Utilizes LSZH jacket material for improved fire safety and environmental compliance
Antennas RF Applications
- High-density data center interconnects
- Telecommunications backbone networks
- Parallel optical transceiver connections
