HG-2327DP-22EG-NF

$192.45

Description：2.3-2.7GHZ 22DBI 2FT MIMO GRID A
Series：HG
Mfr：L-com
Package：Bag

SKU:215ca1441637 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG-2327DP-22EG-NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is 2.3-2.7GHZ 22DBI 2FT MIMO GRID A. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG-2327DP-22EG-NF

Description：2.3-2.7GHZ 22DBI 2FT MIMO GRID A
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.5GHz
Frequency Range：2.3GHz ~ 2.7GHz
Antenna Type：Dish
Number of Bands：1
VSWR：2.5
Return Loss：-
Gain：22dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：N Type Female (2)
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：4.100" (104.14mm)
Applications：802.11b/g/n, ISM, Wi-Fi, WLAN
Power - Max：50 W

Antennas RF datasheet and documents for HG-2327DP-22EG-NF

HG-2327DP-22EG-NF

Antennas RF Overview

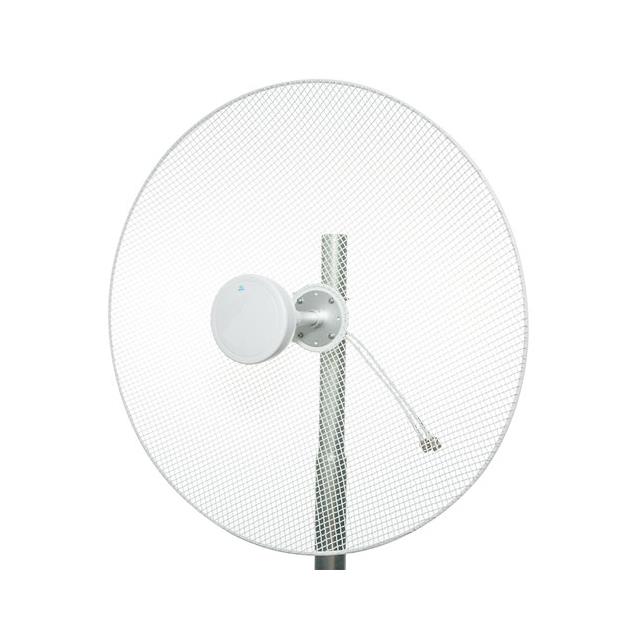

The HG-2327DP-22EG-NF is a 2x2 MIMO mesh parabolic dish antenna manufactured by L-com. It operates within the 2300 to 2700 MHz frequency range, providing a gain of 22 dBi. The unit features Type N female connectors and supports +/-45 slant polarization. Designed for point-to-point communication, it utilizes a low windload mesh construction suitable for industrial, medical, science, or unlicensed applications including IEEE 802.11b/g/n standards.

Antennas RF Feature Summary

2x2 MIMO capability for enhanced signal throughput
Low windload mesh design for structural stability
+/-45 slant polarization support

Antennas RF Applications

Point-to-point wireless communication links
Industrial wireless network deployments
Medical and science unlicensed band applications

Antennas RF Procurement Notes

Verify connector type compatibility with existing equipment before purchase. Confirm that the operating environment falls within the specified 2300-2700 MHz range. Ensure mounting hardware supports the antenna's physical dimensions and windload requirements. Check local regulatory compliance for unlicensed spectrum usage in the deployment region.

Antennas RF Selection Notes

Select this model when high-gain directional transmission is required over long distances. The 2x2 MIMO configuration is optimal for environments needing robust data rates. Consider the mesh design for areas with moderate wind exposure. Ensure the application does not require different polarization schemes than +/-45 degrees.

Antennas RF Part Context

This component belongs to L-com's line of high-gain directional antennas. It is engineered specifically for scenarios demanding focused signal transmission rather than omnidirectional coverage. The parabolic dish form factor distinguishes it from grid or panel antennas, offering higher directivity for specific link budgets.
