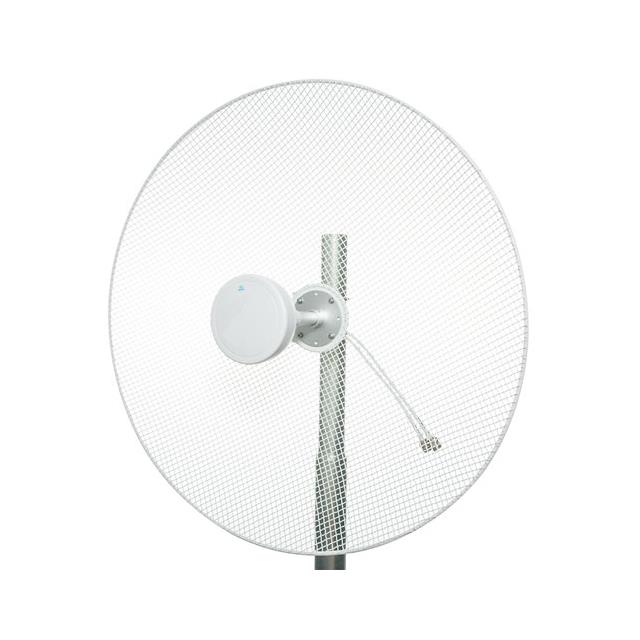

HG-2327DP-22EG-NM

HG-2327DP-22EG-NM is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is 2.3-2.7GHZ 22DBI 2FT MIMO GRID A. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG-2327DP-22EG-NM

• Description：2.3-2.7GHZ 22DBI 2FT MIMO GRID A
• Series：HG
• Mfr：L-com
• Package：Bag
• RF Family/Standard：General ISM, WiFi
• Frequency Group：UHF (2GHz ~ 3GHz)
• Frequency (Center/Band)：2.5GHz
• Frequency Range：2.3GHz ~ 2.7GHz
• Antenna Type：Dish
• Number of Bands：1
• VSWR：2.5
• Return Loss：-
• Gain：22dBi
• Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
• Termination：N Type Male (2)
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Bracket Mount
• Height (Max)：4.100" (104.14mm)
• Applications：802.11b/g/n, ISM, Wi-Fi, WLAN
• Power - Max：50 W

Antennas RF datasheet and documents for HG-2327DP-22EG-NM
