HG-GPGLTIM32

Antennas RF Overview

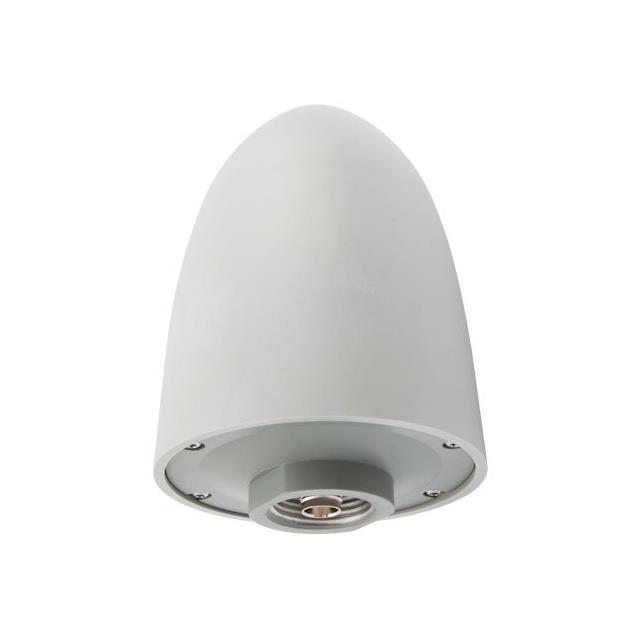

The HG-GPGLTIM32 is a professional-grade GPS/GLNSS timing antenna designed for advanced time and frequency system applications. It operates within the 1574-1610 MHz frequency range, providing high-gain reception with a gain of 32 dBi. The antenna features a 50 ohm impedance and utilizes a TNC connector interface. Constructed with an impact-resistant ASA radome and a rugged die-cast aluminum base, it offers durability in harsh environments. The unit includes an integrated bulkhead TNC jack and carries an IP67 rating for weather resistance.

Antennas RF Feature Summary

• High-selectivity dual filter RF architecture for accurate satellite timing reception
• Impact-resistant ASA radome combined with a rugged die-cast aluminum base
• Integrated bulkhead TNC jack for secure connection
• IP67 rated enclosure for environmental protection

Antennas RF Applications

• Advanced time and frequency system applications
• GPS/GLNSS timing infrastructure
• Professional grade synchronization networks

Antennas RF Procurement Notes

Verify the specific part number suffix to ensure correct configuration, as variants such as the HG-GPGLTIM32-MNT include additional mounting kits. Confirm availability status, as some listings indicate obsolete lifecycle stages for certain configurations. Cross-reference the connector type and impedance requirements with existing system interfaces before ordering to ensure compatibility.

Antennas RF Selection Notes

Select this model for applications requiring precise satellite-based timing synchronization. The 32 dBi gain ensures reliable signal acquisition in challenging conditions. Ensure the installation environment supports the bulkhead mounting style and that the TNC connector matches the receiving equipment. Consider the HG-GPGLTIM32-MNT variant if a complete mounting solution is required rather than just the antenna unit.

Antennas RF Part Context

This component belongs to L-Com's line of GPS/GLNSS timing antennas, which are engineered for professional use in critical infrastructure. The product family focuses on delivering accurate reception of satellite signals for time and frequency systems. The HG-GPGLTIM32 represents the standalone antenna unit, distinct from kit versions that include mounting hardware.

Antennas RF Replacement Considerations

The HG-GPGLTIM32-MNT is a related variant that includes a mounting kit. Verify if the base unit alone suffices or if the bundled mounting hardware is necessary for the specific installation scenario.
