HG-GPSGL30M-SMA

Antennas RF Overview

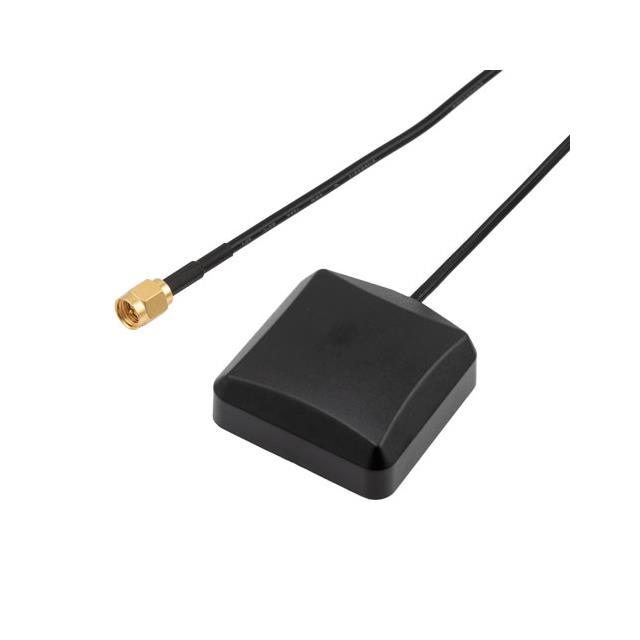

The HG-GPSGL30M-SMA is an RF antenna designed for GPS and GLONASS applications, operating within the 1.575 to 1.615 GHz frequency range. It features a 30 dB gain and a 50 ohm impedance. The unit utilizes an SMA connector and includes a magnetic mount for installation.

Antennas RF Feature Summary

• Supports GPS and GLONASS signal reception
• Equipped with a magnetic mounting base
• Utilizes an SMA interface connector

Antennas RF Applications

• Multipoint mobile applications
• Fixed location installations
• Service vehicle integration
• Public transportation systems

Antennas RF Procurement Notes

Verify the specific connector gender and cable length requirements against project specifications before ordering. Confirm that the magnetic mount surface compatibility aligns with the intended installation environment. Ensure the operating temperature range meets the environmental conditions of the deployment site. Cross-reference the part number with official L-com documentation to confirm current availability and technical revisions.

Antennas RF Selection Notes

Select this component when a compact, magnetically mounted solution is required for GNSS positioning. It is suitable for environments where permanent mounting hardware is impractical. Consider the 30 dB gain for standard reception needs. Verify that the SMA interface matches the receiving equipment's input port type.

Antennas RF Part Context

This model belongs to L-com's line of RF antennas specialized for satellite navigation. It provides a dedicated solution for acquiring GPS and GLONASS signals in mobile and fixed scenarios. The design prioritizes ease of installation through its magnetic base while maintaining standard RF connectivity via the SMA port.

Antennas RF Replacement Considerations

Consult official L-com substitution guides for compatible alternatives. No public substitute part numbers are confirmed in available documentation.
