HG-GPSL1L5-40

Antennas RF Overview

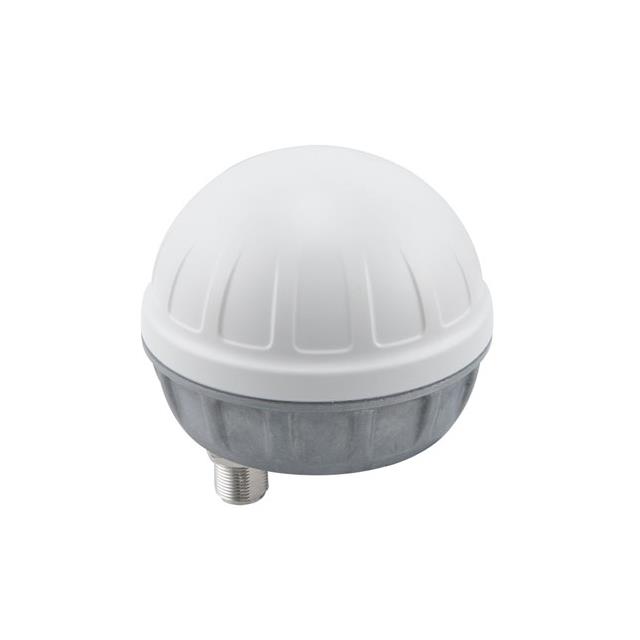

The L-Com HG-GPSL1L5-40 is a dual-band active GNSS timing antenna designed for high-precision positioning applications. It operates across the L1 and L5 frequency bands, covering 1166–1218 MHz and 1559–1606 MHz respectively. The component features a Type N female connector and provides a gain of 43 dBi. It supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, BeiDou, IRNSS, and QZSS. This bracket-mount antenna filters and amplifies received signals to ensure reliable data transmission.

Antennas RF Feature Summary

• Dual-band operation supporting both L1 and L5 frequencies for enhanced signal integrity
• Active amplification with 43 dBi gain to improve reception sensitivity
• Multi-system compatibility including GPS, GLONASS, Galileo, and BeiDou
• Bracket mount design with Type N female interface for secure installation

Antennas RF Applications

• High-precision timing synchronization in telecommunications networks
• Surveying and mapping equipment requiring centimeter-level accuracy
• Geodetic monitoring stations for geological data collection
• Agricultural machinery guidance systems for precision farming

Antennas RF Procurement Notes

Verify that the specific order includes the correct mounting hardware and cable assembly if not purchased separately. Confirm that the active antenna power requirements match the system voltage specifications. Ensure the Type N female connector is compatible with existing RF infrastructure. Check environmental ratings if deployment involves extreme temperatures or moisture exposure. Validate that the bracket mount configuration fits the intended installation surface.

Antennas RF Selection Notes

Select this model when multi-constellation support and high gain are required for timing applications. The dual-band L1/L5 capability addresses ionospheric delay issues common in single-band receivers. Consider the active nature of the antenna which requires appropriate DC power delivery through the coaxial line. Evaluate the bracket mount form factor against available space constraints on vehicles or fixed structures.

Antennas RF Part Context

This component belongs to the L-Com GNSS antenna portfolio focused on professional and industrial positioning solutions. It complements passive antennas by offering amplified signal output for challenging environments. The product line targets sectors demanding robust performance from multiple satellite constellations simultaneously.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement. Verify compatibility with existing cabling and connectors before sourcing alternatives.
