HG-GPSNMO195-SMA

Antennas RF Overview

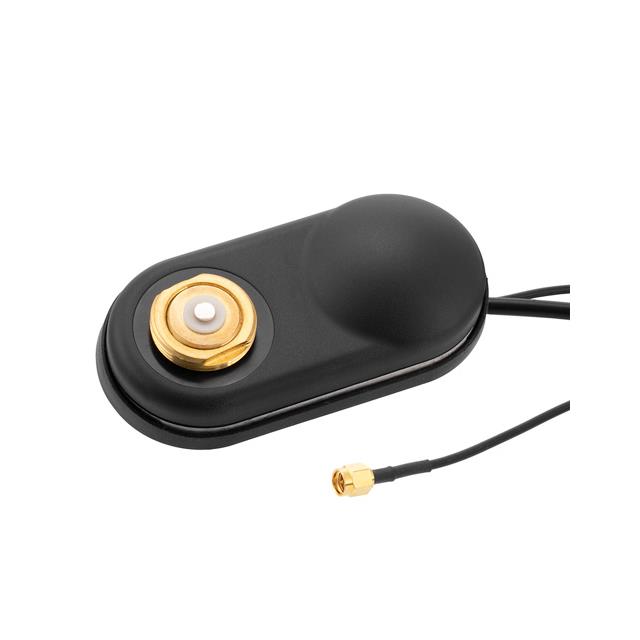

The L-com HG-GPSNMO195-SMA is an NMO combination mount integrating a 30 dB gain GPS vehicular antenna with an SMA connector. Designed for mobile applications, it utilizes LL195 cable to ensure signal integrity in vehicle environments. The unit combines the mounting hardware and antenna into a single assembly, providing high sensitivity for GPS signal reception. It supports standard NMO base installation while offering an integrated SMA interface for direct connection to compatible receivers without additional adapters.

Antennas RF Feature Summary

• Integrates NMO mount base with high-gain GPS antenna
• Includes built-in SMA connector for simplified wiring
• Optimized for multipoint mobile and service vehicle applications

Antennas RF Applications

• Multipoint mobile applications
• Service vehicles requiring high sensitivity
• Public transportation systems

Antennas RF Procurement Notes

Verify that the target application requires an integrated NMO mount and SMA connector configuration. Confirm compatibility with the specific GPS receiver input impedance and connector gender. Ensure the vehicle roof structure supports the NMO base mounting requirements. Check if the integrated design meets space constraints compared to separate antenna and mount components.

Antennas RF Selection Notes

Select this model when a combined mounting solution and antenna are preferred over discrete components. It is suitable for installations where minimizing cable runs and connection points is critical. Consider the 30 dB gain specification for environments with potential signal obstruction. Verify that the SMA connector type matches the existing cabling infrastructure of the target system.

Antennas RF Part Context

This component belongs to L-com's line of vehicular antennas designed for robust mobile communication. It addresses the need for reliable GPS positioning in dynamic environments by combining structural mounting with RF performance. The product simplifies installation logistics by providing a unified assembly rather than requiring separate procurement of mounts and antennas.

Antennas RF Replacement Considerations

The HG-GPSGLNMO195-SMA serves as a related variant supporting both GPS and GLONASS systems with slightly different gain specifications. Users requiring multi-constellation support should evaluate this alternative against the single-frequency HG-GPSNMO195-SMA model.
