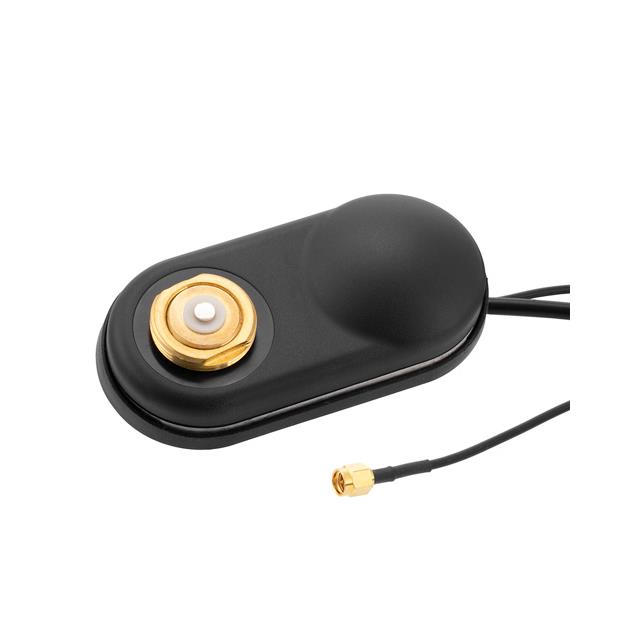

HG-GPSNMO58-SMA

$158.22

Description：ANT COMBO NMO MOUNT 30 DB GPS VE
Series：HG
Mfr：L-com
Package：Bag

SKU:0b7cf7107a00 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG-GPSNMO58-SMA is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANT COMBO NMO MOUNT 30 DB GPS VE. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG-GPSNMO58-SMA

Description：ANT COMBO NMO MOUNT 30 DB GPS VE
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Navigation
Frequency Group：VHF (f < 300MHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：65MHz, 1.575GHz
Frequency Range：30MHz ~ 100MHz, 1.572GHz ~ 1.578GHz
Antenna Type：Module
Number of Bands：2
VSWR：1.5, 2
Return Loss：-
Gain：30dBi
Features：Cable - 5.182m, Filter
Termination：SMA
Ingress Protection：IP66
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：0.880" (22.35mm)
Applications：GPS
Power - Max：10 W

Antennas RF datasheet and documents for HG-GPSNMO58-SMA

HG-GPSNMO58-SMA

Antennas RF Overview

The HG-GPSNMO58-SMA is an RF antenna designed for GPS applications, operating at a frequency of 1.57542 GHz. It features a gain of 30 dB and an input impedance of 50 ohms. The antenna utilizes Right Hand Circular polarization and employs NMO mount with SMA connectors. RG58 cable is integrated into the assembly.

Antennas RF Feature Summary

Right Hand Circular polarization
Integrated RG58 cable
NMO mount configuration

Antennas RF Applications

GPS systems

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against the official datasheet before ordering. Confirm that the NMO mount interface matches the installation surface. Ensure the 50-ohm impedance aligns with the system design to prevent signal reflection issues during integration.

Antennas RF Selection Notes

Select this model when Right Hand Circular polarization is required for GPS reception. The integrated RG58 cable simplifies installation compared to discrete components. Verify compatibility with existing SMA ports on the receiving equipment to ensure proper connection without additional adapters.

Antennas RF Part Context

This component belongs to the L-com RF antenna product line. It is specifically engineered for vehicular or fixed GPS installations requiring high gain. The NMO mount provides a secure attachment method for metal surfaces.
