HG0500503

Overview

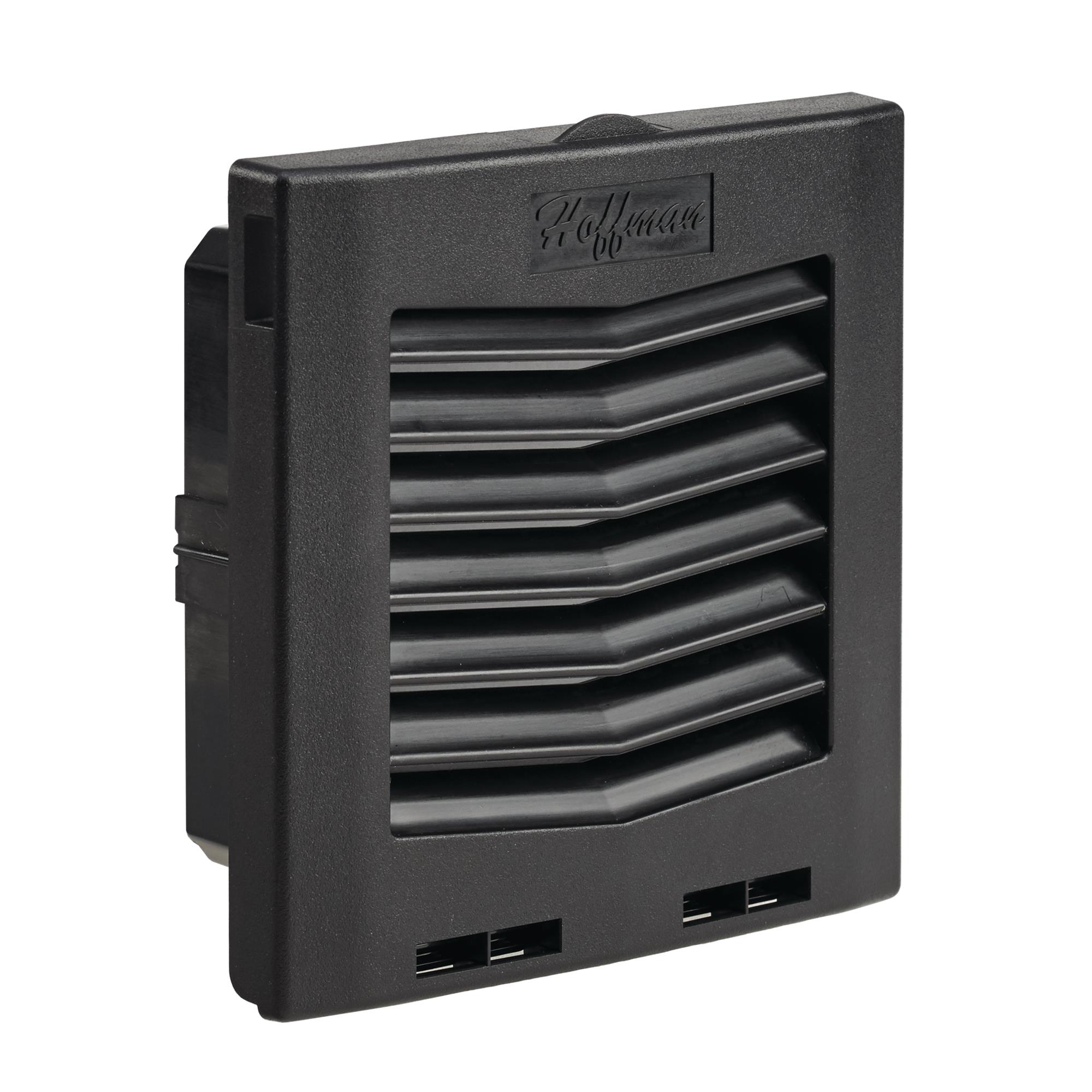

The HG0500503 is a filter fan exhaust grille manufactured by nVent Hoffman. It is designed to fit HF05 fans and features a 5-inch size specification. The unit provides an IP55 protection rating and is constructed from black plastic material. Its physical dimensions are approximately 6.16 inches in width and 6.15 inches in height.

Feature Summary

• Features a unique click-fit design for quick installation into enclosure walls without tools or fasteners
• Opens with the flick of a finger to allow easy filter replacement

Applications

• Industrial automation systems
• Automotive assembly equipment
• Package handling machinery

Procurement Notes

Verify that the target enclosure wall thickness accommodates the click-fit mechanism specifications. Confirm compatibility with the specific HF05 fan model intended for use, as this grille is designated for that series. Ensure the required IP55 rating aligns with the environmental protection needs of the installation site.

Selection Notes

Select this component when tool-free maintenance access is prioritized for filtration systems. It is suitable for applications requiring rapid filter changes without disassembly tools. Consider the black plastic construction for corrosion resistance in standard industrial environments where metal grilles are not strictly mandated.

Part Context

This part belongs to the Hoffman HG Filter Fan Exhaust Grille series. It serves as a protective cover and mounting interface for HF05 series fans. The product line emphasizes ease of installation and maintenance through its specialized mechanical design, distinguishing it from traditional screw-mounted alternatives.

Replacement Considerations

Direct substitutes include the HG1300503, which shares the same click-fit design philosophy but may differ in specific dimensional requirements or rope standards.
