HG0500504

Overview

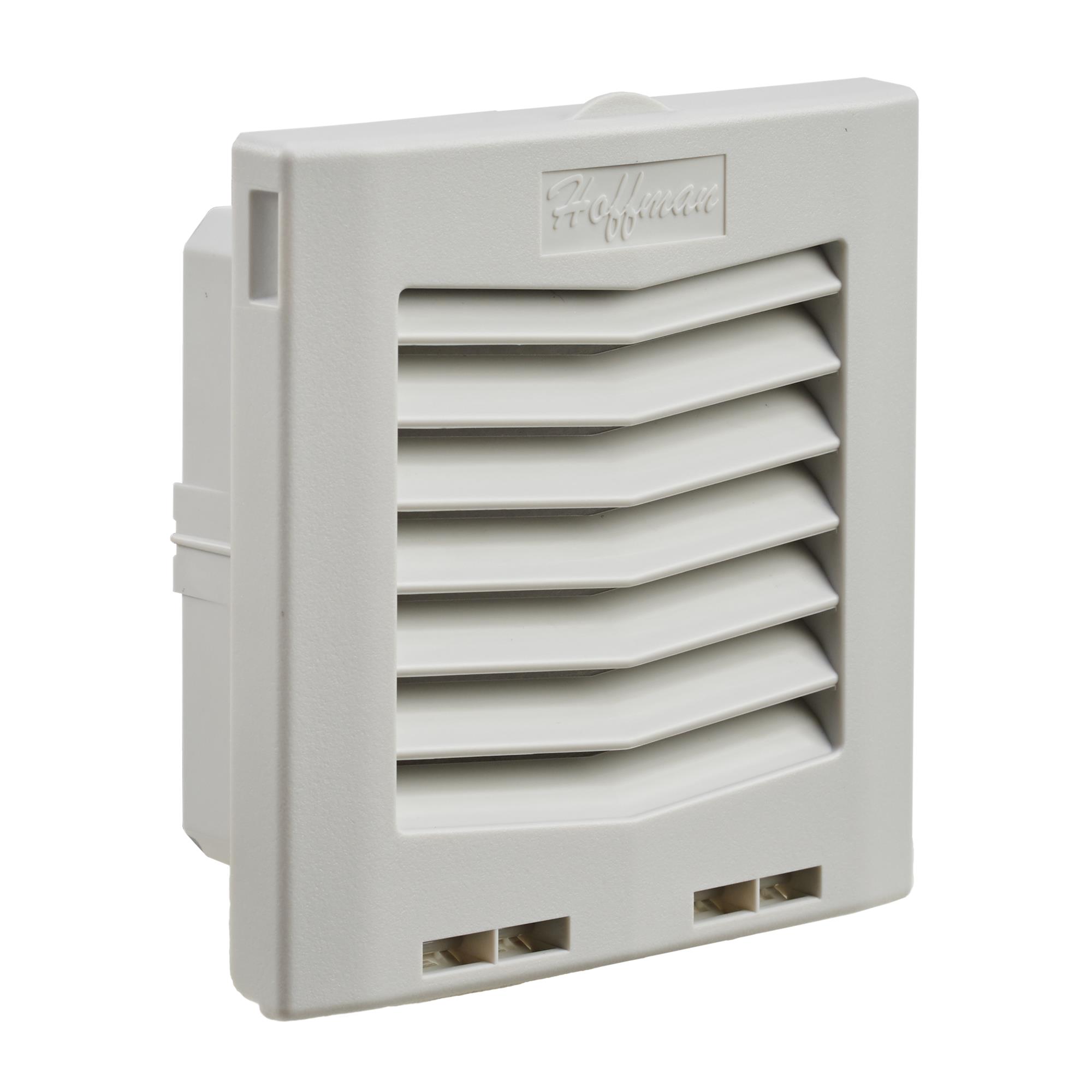

The HG0500504 is a 5-inch exhaust grille kit manufactured by nVent Hoffman. It features an IP55 rating and is constructed from UV-resistant plastic in RAL 7035 light gray. The unit measures approximately 6.15 inches in height, 6.16 inches in width, and 2.32 inches in depth. It is specifically designed to fit HF05 filter fans.

Feature Summary

• Click-fit design allows for quick installation into enclosure walls without tools or screws
• UV-resistant plastic material ensures durability in industrial environments
• Finger-operated opening mechanism facilitates easy filter replacement

Applications

• Industrial automation systems
• Automotive assembly lines
• Package handling equipment

Procurement Notes

Verify that the target enclosure wall thickness accommodates the specific depth of the HG0500504 unit. Confirm compatibility with existing HF05 filter fan models before procurement. Ensure the required ingress protection level meets the operational environment standards. Check for any specific mounting constraints within the enclosure layout.

Selection Notes

Select this model when tool-free maintenance access is required for HF05 fans. The click-fit mechanism reduces installation time compared to screw-mounted alternatives. Choose this part for applications requiring UV resistance and IP55 protection levels. Ensure the physical dimensions align with the available space in the enclosure side panel.

Part Context

This component belongs to the Hoffman HG series of ventilation accessories. It serves as a protective cover for exhaust fans while allowing airflow. The product line focuses on modular enclosure solutions for industrial control panels. Compatibility with standard fan sizes ensures broad applicability across various cabinet configurations.

Replacement Considerations

No public confirmed substitute part numbers are available.
