HG1000504

Overview

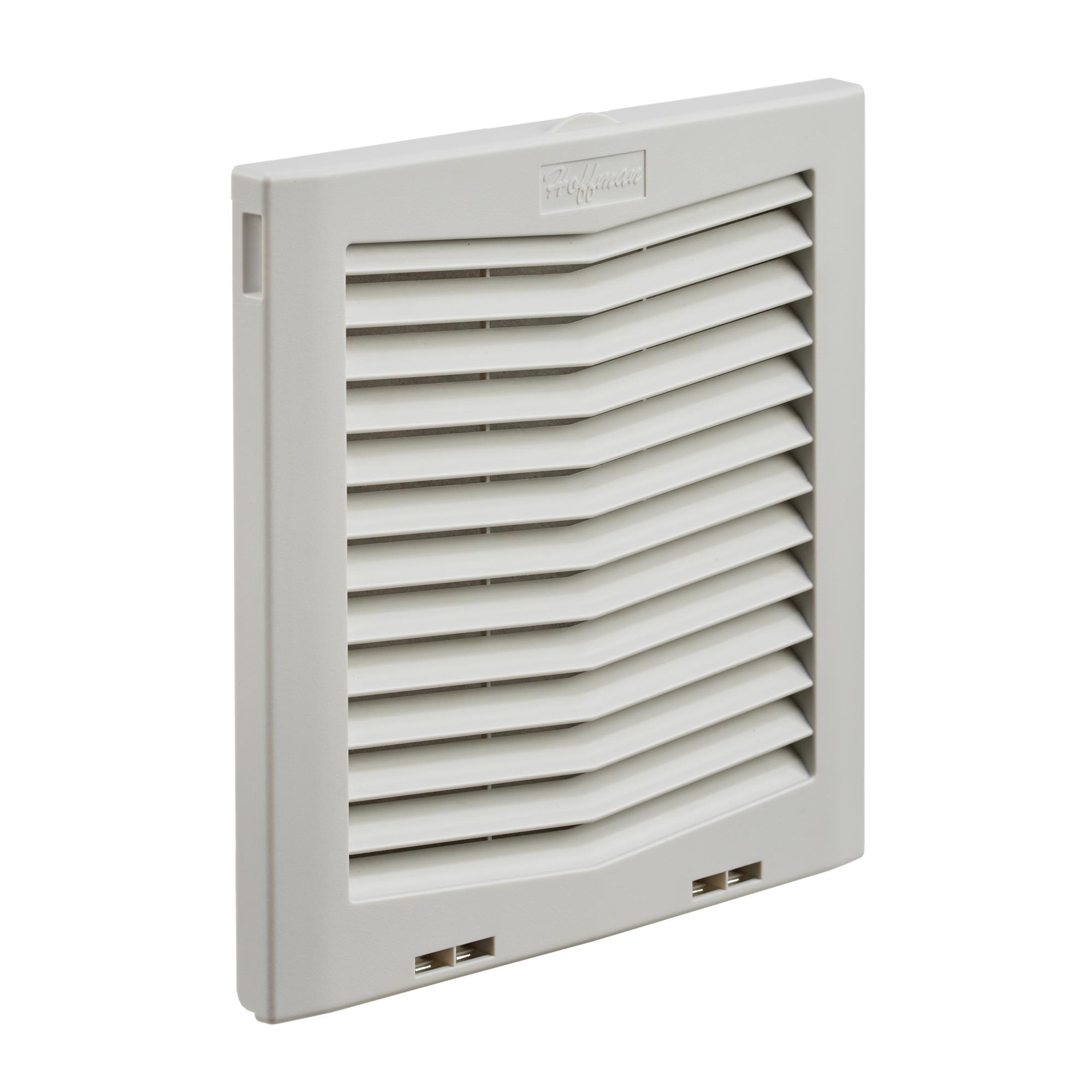

The HG1000504 is a light gray exhaust grille manufactured by nVent Hoffman. It features a plastic construction and provides an IP55 ingress protection rating. The unit measures 10 inches (254 mm) in size, falling within the available range of 4 to 13 inches. It is designed for use as a ventilation component in industrial enclosures.

Feature Summary

• Click-Fit design allows quick installation into enclosure walls without tools or screws
• Opens with a flick of the finger to facilitate easy filter replacement
• Constructed from plastic material with a light gray finish

Applications

• Industrial automation systems
• Automotive assembly equipment
• Package handling machinery

Procurement Notes

Verify the specific dimensional requirements against the enclosure wall opening before procurement. Confirm that the IP55 rating meets the environmental protection needs of the installation site. Ensure compatibility with the intended filter media, as the grille is designed to open for maintenance access.

Selection Notes

Select this model when tool-free installation and rapid maintenance access are required. Consider the 10-inch size relative to airflow demands. Verify that the plastic material and IP55 rating are suitable for the operating environment compared to metal alternatives.

Part Context

This component belongs to the HG10 series of rack accessories and ventilation grilles produced by nVent Hoffman. It serves as a protective cover for fan openings while allowing air passage. The series includes various sizes ranging from 4 to 13 inches to accommodate different enclosure dimensions.

Replacement Considerations

Check for other HG10 series models if different sizes are needed. Verify that substitute parts maintain the Click-Fit installation mechanism and IP55 rating. Ensure the replacement matches the physical mounting interface of the existing enclosure.
