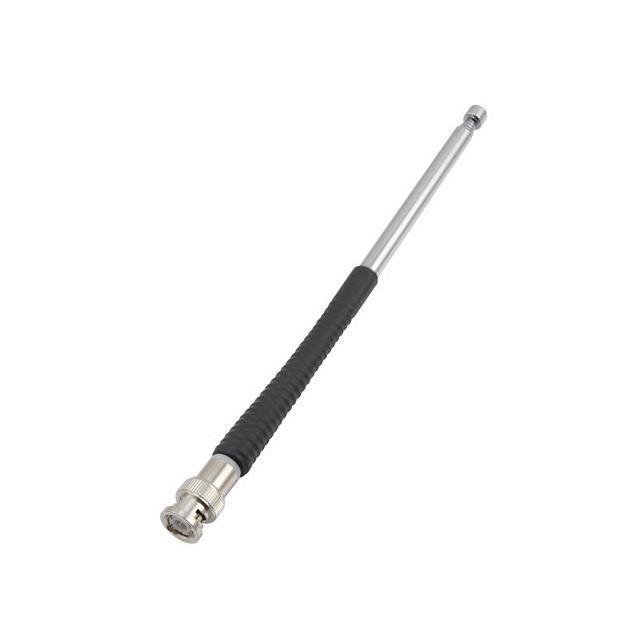

HG110TEL-BNC is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANT 0 DBI TELESCOPIC PORTABLE AN. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG110TEL-BNC
- Description：ANT 0 DBI TELESCOPIC PORTABLE AN
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：General ISM
- Frequency Group：VHF (f < 300MHz)
- Frequency (Center/Band)：146MHz
- Frequency Range：118MHz ~ 174MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：0dBi
- Features：-
- Termination：BNC
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：8.400" (213.36mm)
- Applications：General Purpose
- Power - Max：10 W
Antennas RF datasheet and documents for HG110TEL-BNC
Antennas RF Overview
The HG110TEL-BNC is a general-purpose RF antenna manufactured by L-com. It features a straight whip design and utilizes a BNC connector for mounting. This component is intended for radio frequency signal transmission and reception applications requiring standard coaxial connectivity.
Antennas RF Feature Summary
- Straight whip antenna geometry
- BNC connector interface
- General-purpose RF application
Antennas RF Applications
- RF signal transmission
- Radio frequency reception
- General wireless connectivity
Antennas RF Procurement Notes
Verify the specific model designation HG110TEL-BNC against official L-com documentation to confirm current availability status. Ensure compatibility with existing BNC interfaces before procurement. Confirm that the straight whip form factor meets spatial requirements for the intended installation environment.
Antennas RF Selection Notes
Select this unit when a standard BNC-mount solution is required for general RF tasks. The straight whip design offers omnidirectional characteristics suitable for basic coverage needs. Evaluate environmental exposure to determine if additional weatherproofing or specialized gain specifications are necessary beyond this general-purpose model.
Antennas RF Part Context
L-com specializes in industrial-grade wired and wireless connection products, including antennas and connectors. The HG110TEL-BNC belongs to their RF antenna portfolio, designed to provide reliable signal integrity for various communication systems requiring standardized BNC interfaces.
Antennas RF Replacement Considerations
Identify compatible replacements by matching the BNC connector type and straight whip physical configuration. Verify that any substitute antenna supports the same frequency bands and impedance requirements as the original HG110TEL-BNC specification.
