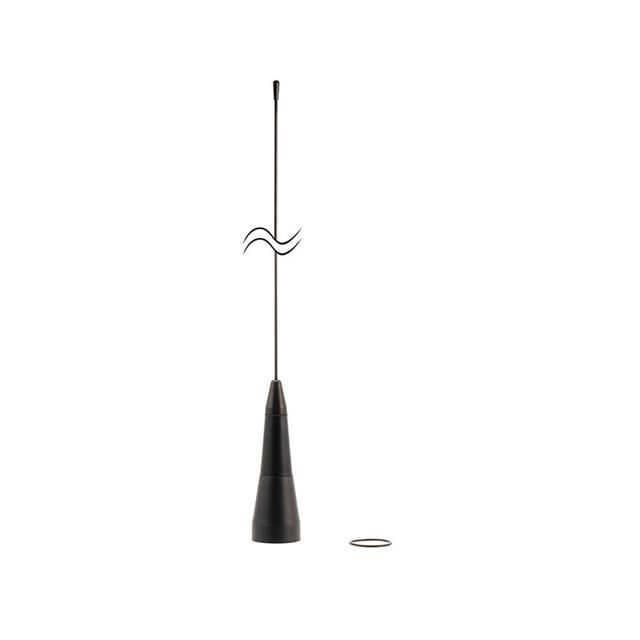

HG133PS-NMO is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANT 3 DBI POLY SPRING VEHICULAR. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG133PS-NMO
- Description：ANT 3 DBI POLY SPRING VEHICULAR
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：General ISM
- Frequency Group：VHF (f < 300MHz)
- Frequency (Center/Band)：153MHz
- Frequency Range：132MHz ~ 174MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：3dBi
- Features：-
- Termination：NMO
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：12.900" (327.66mm)
- Applications：General Purpose
- Power - Max：150 W
Antennas RF datasheet and documents for HG133PS-NMO
Antennas RF Overview
The HG133PS-NMO is a vehicular antenna manufactured by L-com, designed for VHF band operations. It operates within a frequency range of 132 MHz to 174 MHz and provides a gain of 3 dBi. The component utilizes an NMO connector interface and employs a poly spring construction type. It is intended for mounting on standard NMO mounts for vehicle applications.
Antennas RF Feature Summary
- Designed for vehicular installation on standard NMO mounts
- Utilizes poly spring construction for durability
- Optimized for VHF band operations
Antennas RF Applications
- Vehicle VHF communications
- Standard NMO mount installations
Antennas RF Procurement Notes
Verify the specific datasheet version and manufacturer documentation to confirm technical specifications before procurement. Ensure compatibility with existing NMO mounting hardware. Cross-reference part numbers with official L-com catalogs to avoid substitution errors. Confirm environmental ratings and operational frequency ranges match system requirements.
Antennas RF Selection Notes
Select this model when a 3 dBi gain antenna is required for the 132-174 MHz VHF band. The NMO connector interface dictates compatibility with standard vehicular mounting bases. Consider the poly spring construction for mechanical resilience in mobile environments. Verify that the physical dimensions and mounting requirements align with the target vehicle platform.
Antennas RF Part Context
This component belongs to the L-com RF antenna product line, specifically engineered for mobile and vehicular communication systems. It serves as a specialized solution for VHF frequency bands, offering reliable performance through its dedicated spring design and standardized connector interface for easy integration into existing vehicle setups.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official L-com resources for potential cross-references or updated series replacements.
