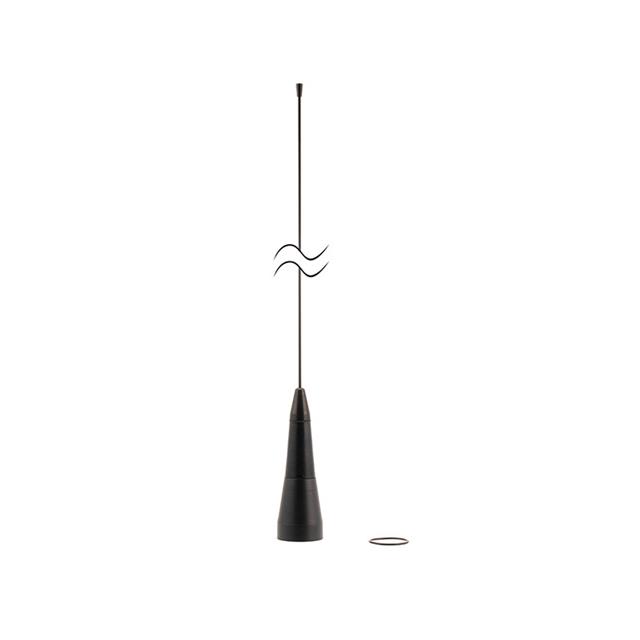

HG142PSWB-NMO is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANT 2 DBI POLY SPRING VEHICULAR. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG142PSWB-NMO
- Description：ANT 2 DBI POLY SPRING VEHICULAR
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：General ISM
- Frequency Group：VHF (f < 300MHz)
- Frequency (Center/Band)：159MHz
- Frequency Range：144MHz ~ 174MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：Connector
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：14.600" (370.84mm)
- Applications：General Purpose
- Power - Max：150 W
Antennas RF datasheet and documents for HG142PSWB-NMO
Antennas RF Overview
The L-com HG142PSWB-NMO is a vehicle VHF whip antenna designed for mobile applications. It operates within the 144 MHz to 174 MHz frequency range, covering standard VHF bands. The antenna features a straight whip design with an NMO connector mount type for secure attachment to vehicles. It supports general-purpose communication needs in this frequency spectrum.
Antennas RF Feature Summary
- Straight whip antenna design optimized for vehicle mounting
- NMO connector interface for standardized mobile installation
- Operates within the 144 MHz to 174 MHz VHF band
Antennas RF Applications
- Vehicle-mounted VHF communications
- Mobile radio installations
- General purpose VHF transmission and reception
Antennas RF Procurement Notes
Verify the specific frequency requirements against the 144-174 MHz operational range before procurement. Confirm that the NMO mount interface matches existing vehicle hardware. Ensure compatibility with intended VHF communication protocols. Check datasheet for power handling limits if high-power transceivers are involved.
Antennas RF Selection Notes
Select this model when a dedicated VHF whip antenna is required for mobile platforms. The NMO mount ensures robust mechanical stability during vehicle operation. Consider environmental sealing requirements if operating in harsh conditions. Verify impedance matching with connected RF equipment for optimal signal integrity.
Antennas RF Part Context
This component belongs to the L-com mobile antenna series, specifically engineered for vehicular use. It complements other NMO-mount antennas by providing coverage in the VHF spectrum. The product line focuses on durable, reliable connectivity solutions for mobile communications infrastructure.
Antennas RF Replacement Considerations
Direct substitutes must maintain the NMO mount interface and cover the 144-174 MHz range. Verify physical dimensions and gain characteristics match system requirements. Cross-reference with other L-com VHF whip models for potential upgrades or alternatives.
