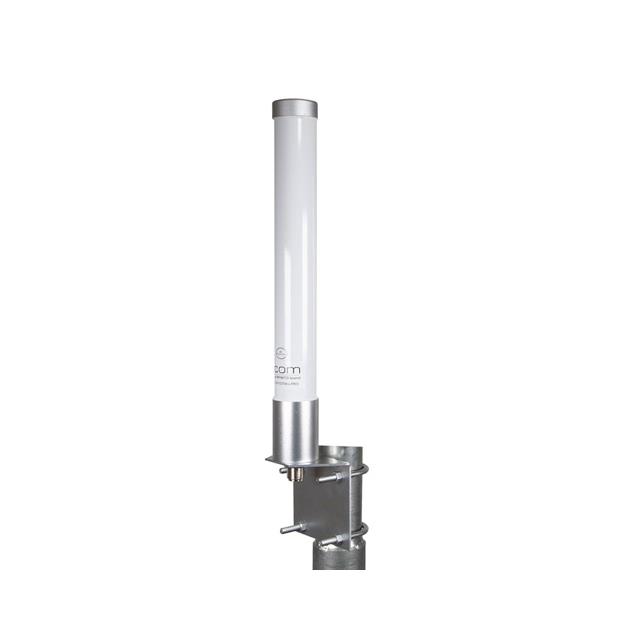

HG172706U-PRO

$139.49

Description：1710-2700MHZ 6 DBI OMNI ANTENNA,
Series：HG
Mfr：L-com
Package：Bag

SKU:390b99e0d15a Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG172706U-PRO is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is 1710-2700MHZ 6 DBI OMNI ANTENNA,. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG172706U-PRO

Description：1710-2700MHZ 6 DBI OMNI ANTENNA,
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：2.205GHz
Frequency Range：1.71GHz ~ 2.7GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2.3
Return Loss：-
Gain：6dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：12.700" (322.58mm)
Applications：5G, LTE
Power - Max：50 W

Antennas RF datasheet and documents for HG172706U-PRO

HG172706U-PRO

Antennas RF Overview

The L-com HG172706U-PRO is a PRO Series omnidirectional RF antenna designed for cellular LTE signal transmission. It operates within the 1710 to 2700 MHz frequency range and provides a gain of 6 dBi. The component supports a maximum power input of 50 W and features an N Type Female termination. Mounting is facilitated via a bracket mount configuration, with available cable lengths including 305mm, 1.524m, 3.048m, and 7.62m.

Antennas RF Feature Summary

Omnidirectional radiation pattern optimized for cellular LTE broadcasting
Bracket mount design for secure installation
N Type Female connector interface

Antennas RF Applications

Cellular LTE signal broadcasting
Broadband wireless communication systems
Outdoor RF signal distribution

Antennas RF Procurement Notes

Verify that the specific cable length variant matches the required deployment distance, as options include 305mm, 1.524m, 3.048m, and 7.62m. Confirm the N Type Female termination compatibility with existing transceiver equipment. Ensure the mounting bracket aligns with the physical installation structure. Validate that the 50 W maximum power rating exceeds the system's peak output requirements to prevent component damage.

Antennas RF Selection Notes

Select this model when a dedicated 6 dBi gain omnidirectional solution is required specifically for the 1710-2700 MHz band. It is suitable for applications prioritizing LTE coverage over broader multi-band capabilities found in other series models. Consider the available cable lengths to minimize additional adapters or extensions during integration.

Antennas RF Part Context

This antenna belongs to the L-com PRO Series, which focuses on high-performance RF solutions for specialized communication bands. Unlike multi-band variants such as the HG72708U, this model targets the specific 1710-2700 MHz spectrum, ensuring optimized performance for LTE networks without unnecessary bandwidth overhead.
