HG172708U-PRO is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is 1710-2700MHZ 8 DBI OMNI ANTENNA,. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG172708U-PRO
- Description：1710-2700MHZ 8 DBI OMNI ANTENNA,
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.205GHz
- Frequency Range：1.71GHz ~ 2.7GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：2.3
- Return Loss：-
- Gain：8dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：22.800" (579.12mm)
- Applications：5G, LTE
- Power - Max：50 W
Antennas RF datasheet and documents for HG172708U-PRO
Antennas RF Overview

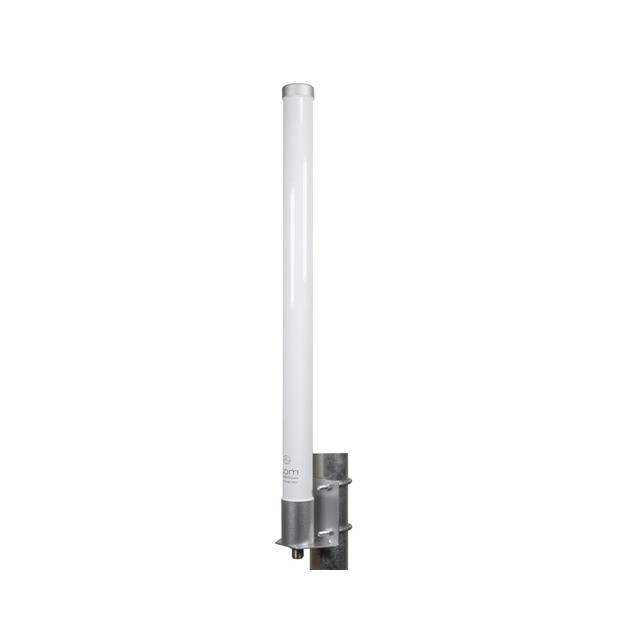

The L-com HG172708U-PRO is an omnidirectional PRO Series antenna designed for outdoor LTE and cellular applications. It operates within a frequency range of 1710 to 2700 MHz, supporting multiple communication bands including LTE and 5G. The unit provides a gain of 8 dBi and features a 50-ohm impedance with an N-type female connector. Engineered for durability, it utilizes a fiberglass radome suitable for harsh environments.
Antennas RF Feature Summary
- Engineered with a durable fiberglass radome for reliable outdoor performance
- Provides consistent omnidirectional signal coverage across cellular bands
- Designed specifically for high-performance LTE network installations
Antennas RF Applications
- Outdoor LTE network infrastructure deployment
- Cellular signal broadcasting and reception
- 5G communication system integration
Antennas RF Procurement Notes
Verify the specific model designation HG172708U-PRO against official L-com documentation to ensure compatibility with required frequency bands. Confirm that the N-type female connector interface matches existing cabling systems. Check for any updated datasheets regarding environmental ratings or mounting hardware specifications before finalizing procurement orders.
Antennas RF Selection Notes
Select this component when an outdoor-rated omnidirectional solution is required for frequencies between 1710 and 2700 MHz. The 8 dBi gain offers enhanced signal strength compared to standard units. Ensure the installation environment supports the physical dimensions and weight of the PRO Series design while maintaining line-of-sight requirements for optimal cellular performance.
Antennas RF Part Context
This antenna belongs to the L-com PRO Series, which focuses on robust construction for demanding wireless environments. The HG172708U-PRO specifically targets the cellular spectrum, distinguishing it from VHF/UHF portable whips or RFID antennas within the same brand portfolio. Its design prioritizes longevity and signal integrity in fixed outdoor positions.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mounts and cable assemblies if considering alternative models from other manufacturers.
