HG1727S6X6518-4F-R

Antennas RF Overview

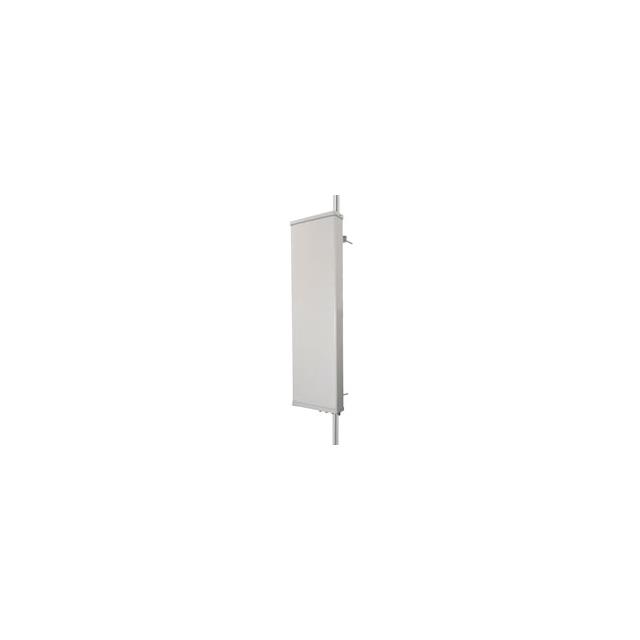

The HG1727S6X6518-4F-R is a multi-band sector antenna operating within the 1710 to 2690 MHz frequency range. It provides an 18 dBi gain and features a 65-degree horizontal beamwidth. The unit incorporates internal Remote Electrical Tilt (RET) capability supporting 2 to 12 degrees of adjustment via AISG 2.0 protocol. Connectivity is established through two 4.3-10 female connectors. The antenna is housed in a fiberglass radome designed for rugged outdoor deployment.

Antennas RF Feature Summary

• Internal Remote Electrical Tilt mechanism for dynamic vertical pattern optimization
• Dual connector configuration for flexible MIMO or diversity setups
• Ruggedized fiberglass radome construction for environmental durability

Antennas RF Applications

• LTE cellular base station sectors
• 5G small cell deployments
• Broadband wireless access networks

Antennas RF Procurement Notes

Verify that the specific part number matches the required RET specifications and connector types. Confirm that the supplier provides documentation confirming AISG 2.0 compatibility for the tilt control interface. Ensure the procurement includes all necessary mounting hardware compatible with standard telecom poles.

Antennas RF Selection Notes

Select this model when dual-band coverage across 1710-2690 MHz is required with high directional gain. The integrated RET functionality distinguishes it from fixed-tilt alternatives, allowing remote network optimization without physical site visits. Verify that the 4.3-10 connector interface aligns with existing feeder cable assemblies.

Antennas RF Part Context

This component belongs to L-com's portfolio of multi-band sector antennas designed for macro and small cell infrastructure. It serves as a specialized solution for operators requiring precise beam control and high gain within a compact form factor. The design supports modern digital antenna systems used in advanced mobile networks.

Antennas RF Replacement Considerations

Direct substitutes must match the 1710-2690 MHz range, 18 dBi gain, and 65-degree beamwidth. Verify that any replacement also supports internal RET with AISG 2.0 compliance and utilizes identical 4.3-10 female connectors to maintain system integration.
