HG1727SX6518-4F-R

Antennas RF Overview

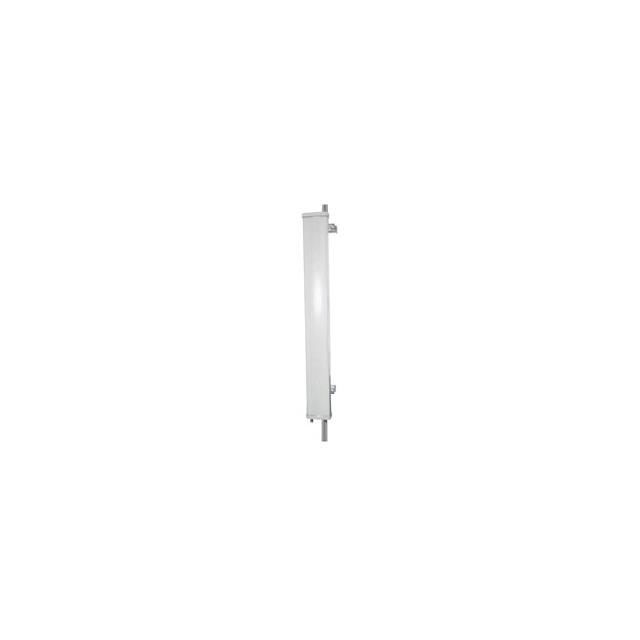

The L-com HG1727SX6518-4F-R is a multi-band sector antenna designed for wireless communication systems. It operates within the frequency range of 1710 to 2690 MHz, providing coverage for LTE, GSM, UMTS, and Wi-Fi applications. The unit features an 18 dBi gain and a 65-degree horizontal beamwidth. It incorporates Remote Electrical Tilt (RET) capabilities with a mechanical tilt range of 2 to 12 degrees. The antenna utilizes two 4.3-10 female connectors for signal transmission.

Antennas RF Feature Summary

• Multi-band support for cellular and Wi-Fi standards
• Integrated remote electrical tilt mechanism
• High-gain directional radiation pattern
• Low passive intermodulation design

Antennas RF Applications

• Mobile network base station sectors
• Public safety communication infrastructure
• Wi-Fi and WISP backhaul links

Antennas RF Procurement Notes

Verify the specific RET control protocol compatibility with existing site controllers before procurement. Confirm that the 4.3-10 connector type matches the feeder cable assemblies in the installation plan. Ensure the physical dimensions and mounting hardware requirements align with the tower or pole structure specifications to guarantee structural integrity during operation.

Antennas RF Selection Notes

Select this model when a high-gain sector solution is required for frequencies between 1710 and 2690 MHz. The integrated RET feature allows for dynamic optimization of coverage areas without manual adjustment. Consider the 65-degree beamwidth for balanced sectorization in dense urban environments. Verify that the low PIM characteristics meet the interference requirements of the specific network deployment.

Antennas RF Part Context

This component belongs to the L-com HG1727 series of sector antennas. The series includes variants with different tilt ranges and connector types. The suffix indicates specific configuration details regarding the RET mechanism and connector interface. This particular model focuses on multi-band performance for modern wireless infrastructure.

Antennas RF Replacement Considerations

Direct substitutes include models from the same HG1727 family with adjusted tilt parameters. Verify connector compatibility if replacing units with different interface standards. Ensure the replacement maintains the required frequency range and gain specifications for the existing network architecture.
